Aeroquip® 1A15LM8
Send Print
  1. pin-int

Aeroquip® 1A15LM8

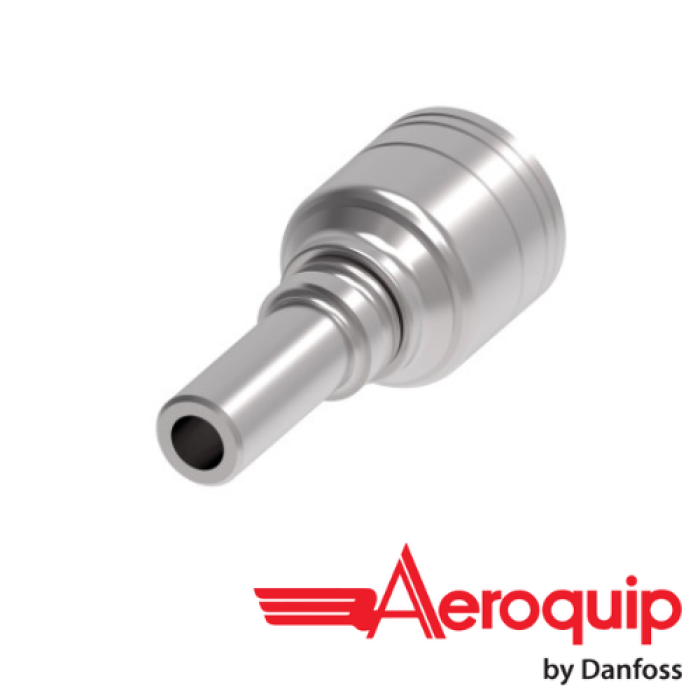

Aeroquip® 1A Series Dura-Kote Carbon Steel Male Metric Standpipe Tube Crimp Straight Hose Fitting, 1/2 in x 15 mm

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1A15LM8
  • MPN: 1A15LM8
  • UPC: 678146045119
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Straight Hose Fitting, 1A Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: Metric Standpipe Tube, Gender 2: Male, Connection Size 2: 15 mm, Cut-Off Factor: 1.46 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.63 in L x 1.22 in W x 1.22 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Male
Connection Size 2      :      15 mm
Cut-Off Factor      :      1.46 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Series      :      1A
Dimensions      :      2.63 in L x 1.22 in W x 1.22 in H
Hose Dash Size      :      08
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Connection 2      :      15 mm Metric
Connection Type 2      :      Metric Standpipe Tube

Applications: General-purpose low and medium-pressure hydraulics
