Aeroquip® 1AA4MFB6
Send Print
  1. pin-int

Aeroquip® 1AA4MFB6

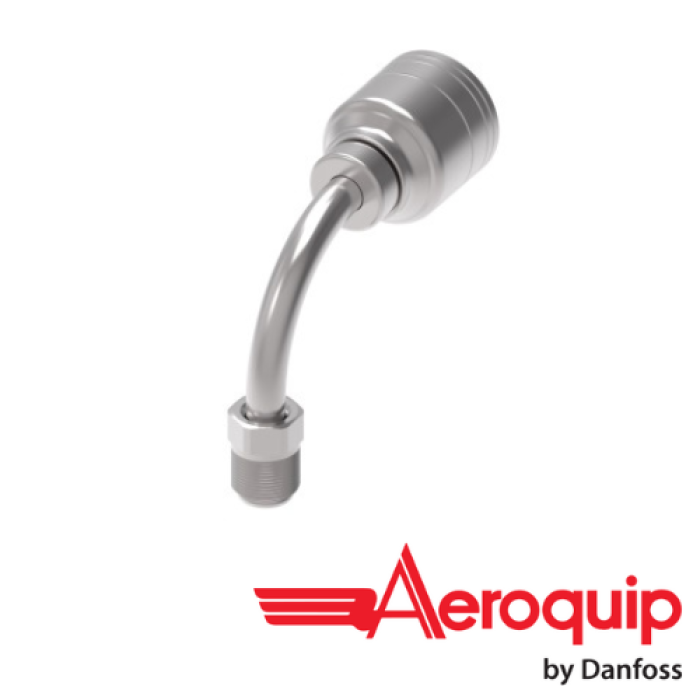

Aeroquip® 1A Series Dura-Kote Carbon Steel Male SAE Inverted Flare Swivel Crimp Hose 90 deg Elbow, 3/8 x 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1AA4MFB6
  • MPN: 1AA4MFB6
  • UPC: 678146126672
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Elbow, 1A Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE Inverted Flare Swivel, Gender 2: Male, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-24, Hex Size: 0.4375 in, Cut-Off Factor: 1.44 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.64 in L x 1.067 in W x 2.22 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Male
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-24
Hex Size      :      0.4375 in
Cut-Off Factor      :      1.44 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Series      :      1A
Dimensions      :      2.64 in L x 1.067 in W x 2.22 in H
Hose Dash Size      :      06
Hose Connection      :      3/8 in
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Connection 2      :      1/4 in Inverted Flare Swivel
Connection Type 2      :      SAE Inverted Flare Swivel

Applications: General-purpose low and medium-pressure hydraulics
