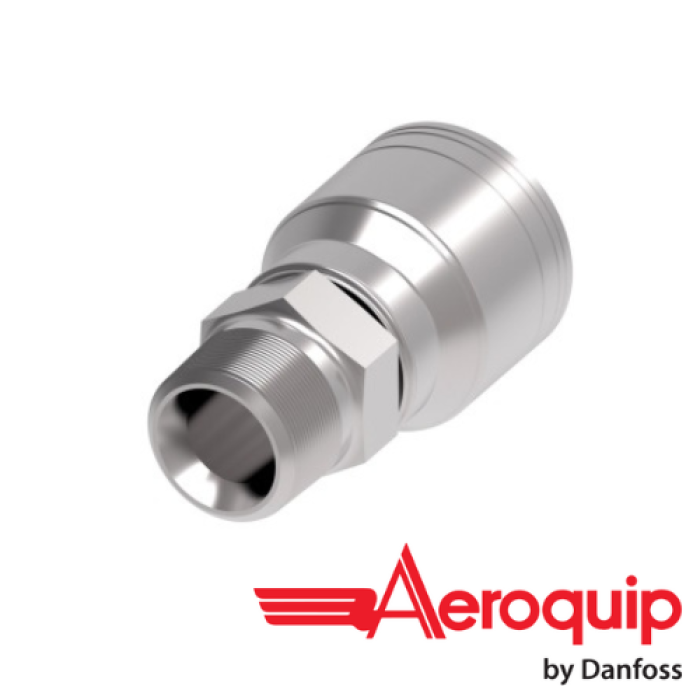

Aeroquip® 1AA12MP12C Stainless Steel
Aeroquip® 1A Series Stainless Steel MNPT Crimp Straight Hose Fitting, 3/4 in
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 1AA12MP12C
- MPN: 1AA12MP12C Stainless Steel
- UPC: 678146125798
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Crimp Straight Hose Fitting, 1A Series, Hose Connection: 3/4 in, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.13 in, Cut-Off Factor: 1.65 in, Stainless Steel, Finish: Dura-Kote, For Use With: 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 2.84 in L x 1.563 in W x 1.563 in H
| Fitting Type | : | Straight Hose Fitting |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/4 in |
| Nominal Size | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 1.13 in |
| Cut-Off Factor | : | 1.65 in |
| Material | : | Stainless Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 2661 (-12 thru -32), FC310, FC510, FC579, FC611, FC619 (-12 thru -32), FC639/FC839B, FC693, FC735, FC849/FC849B, GH120, GH194, GH195, GH663, GH681-6, GH781, GH793, EC115, EC215, EC110, EC210, and EC118 Series Hoses |
| Series | : | 1A |
| Dimensions | : | 2.84 in L x 1.563 in W x 1.563 in H |
| Hose Dash Size | : | 12 |
| Hose Connection | : | 3/4 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in NPT |
| Connection Type 2 | : | NPT |
Applications: General-purpose low and medium-pressure hydraulics
CAD File Link
Catalog/Catalog Cut Sheet
