It's what's inside the MegaCrimp® coupling that makes it perform so well, the "C" insert. This "C" insert allows usage with different hose constructions and wall thicknesses. In addition, the "C" insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire braid hoses and select Xpiral™ hoses. An additional bonus MegaCrimp® couplings are fully qualified for SAE, EN and ISO performance.

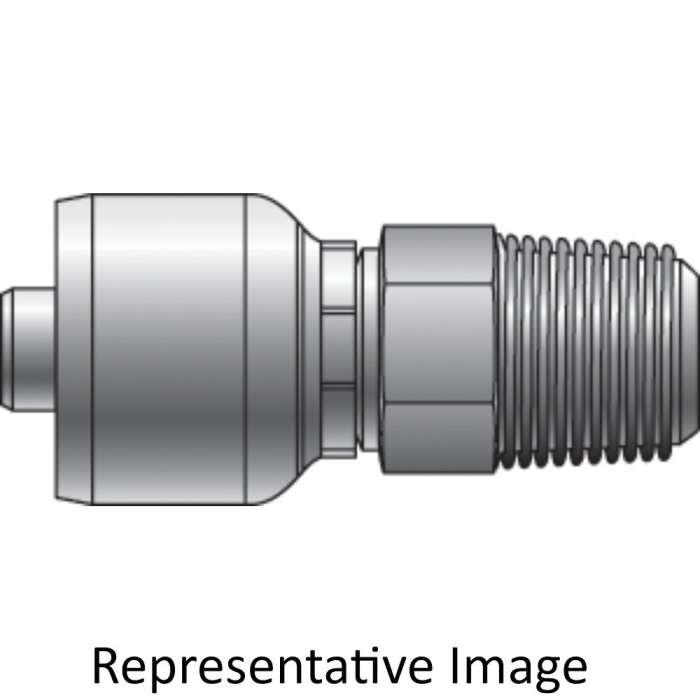

Gates® Straight Hose Fitting, Male Gender 2, Connection Size 2: 3/8 in, 3/8 in Nominal, 0.748 in Hex, 1.22 in Cut-Off Factor, TuffCoat™, 2.244 in L, 06 Hose Dash, 3/8 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/8 in, 3/8 in MNPTF/MNPSM Connection 2, Connection Type 2: MNPTF/MNPSM
| Fitting Type | : | Hose Fitting |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/8 in |
| Nominal Size | : | 3/8 in |
| Hex Size | : | 0.748 in |
| Cut-Off Factor | : | 1.22 in |
| Finish | : | TuffCoat™ |
| Dimensions | : | 2.244 in L |
| Hose Dash Size | : | 06 |
| Hose Connection | : | 3/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 3/8 in MNPTF/MNPSM |
| Connection Type 2 | : | MNPTF/MNPSM |
- The 'bite-the-wire' design allows for coupling and hose retention to make a high-performance, risk-free hydraulic hose assembly
- Full-Torque Nut™ couplings are stronger and more durable than traditional staked nut fittings that are prone to cracking when over-torqued
- The Full-Torque Nut™ transfers input torque to clamp load more consistently than staked nuts, minimizing leaks
- MegaCrimp® couplings allow you to simplify your inventory by carrying one family of couplings that are qualified on all Gates® wire braid hoses
- Tested to 1 M impulse cycles, proving its high-performance and maximum service
