MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp® coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus MegaCrimp® couplings are a fully qualified EN performance coupling.

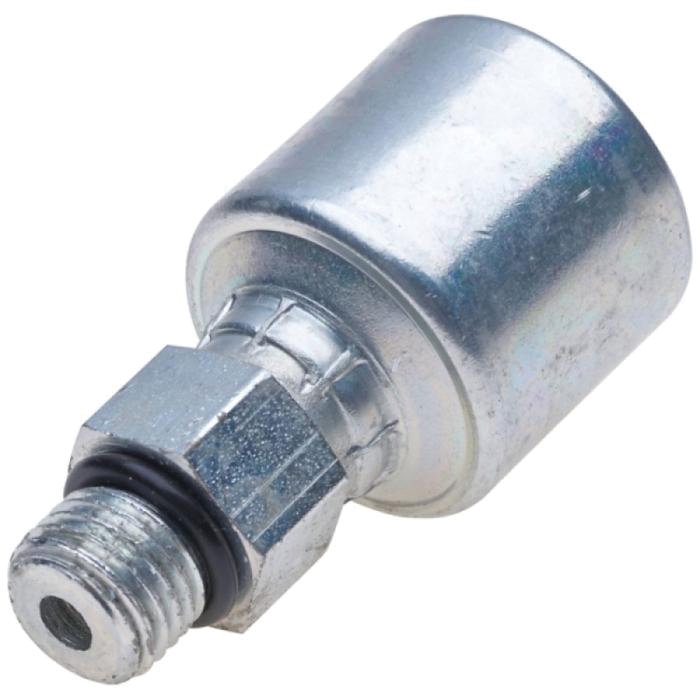

Gates® Crimp Straight Hose Fitting, Male Gender 2, Connection Size 2: 3/4 in, 3/4 in Nominal, 1-1/16-12 Thread Size 2, 1-1/4 in Hex, 1.44 in Cut-Off Factor, TuffCoat™, 2.91 in L, 08 Hose Dash, 1/2 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1/2 in, 3/4 in ORB Connection 2, Connection Type 2: ORB
| Fitting Type | : | Hose Fitting |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/4 in |
| Nominal Size | : | 3/4 in |
| Thread Size 2 | : | 1-1/16-12 |
| Hex Size | : | 1-1/4 in |
| Cut-Off Factor | : | 1.44 in |
| Finish | : | TuffCoat™ |
| Dimensions | : | 2.91 in L |
| Hose Dash Size | : | 08 |
| Hose Connection | : | 1/2 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 3/4 in ORB |
| Connection Type 2 | : | ORB |
- One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong-armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
- MegaCrimp® couplings set a new standard for hydraulic couplings, the unique "C" insert ensures "weep-free" concentric crimping to keep equipment and the environment clean
- Surpassed 1 M impulse cycles during design testing
- Environmentally friendly TuffCoat® plating for 3X better corrosion-resistant than SAE standard
