Aeroquip® 90305-0655S0-0

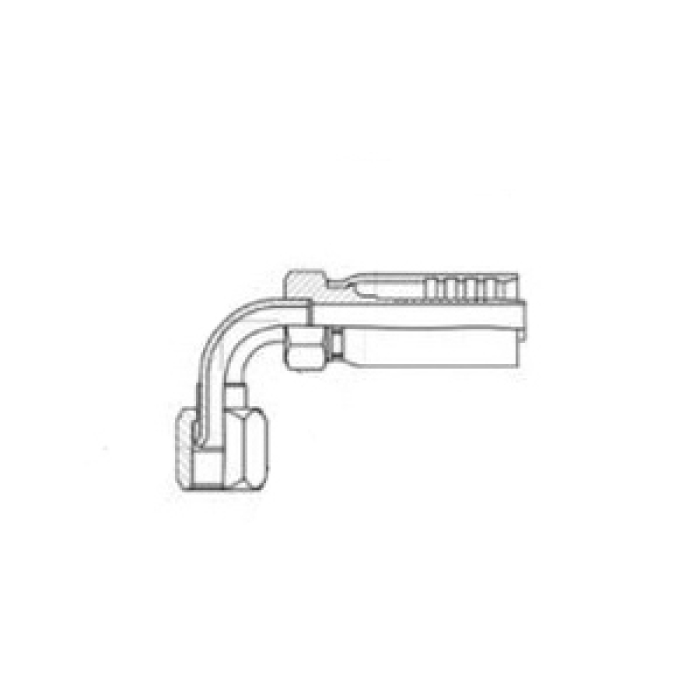

Aeroquip® 903 Plated Steel Female SAE 37 deg JIC Swivel Permanent Swage 90 deg Elbow, 5/16 x 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 90305-0655S0-0
  • MPN: 90305-0655S0-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Swage 90 deg Elbow, 903 Series, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 5/8 x 11/16 in, Cut-Off Factor: 1.94 in, Steel, Finish: Plated, For Use With: 3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, and 3800 Hoses

Hose Connection      :      5/16 in
Gender 2      :      Female
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      9/16-18
Hex Size      :      5/8 x 11/16 in
Cut-Off Factor      :      1.94 in
Material      :      Steel
Finish      :      Plated
For Use With      :      3R30, 3130, 3740, 37AL, 3580, 25CT, 30CT, and 3800 Hoses
Series      :      903
Fitting Type      :      90 deg Elbow
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      3/8 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • Permanently attached, plated steel, medium pressure hose end type

Applications: Hydraulic circuits in mining, metals and minerals, mobile machinery and equipment
