Aeroquip® 90V04-045400-0

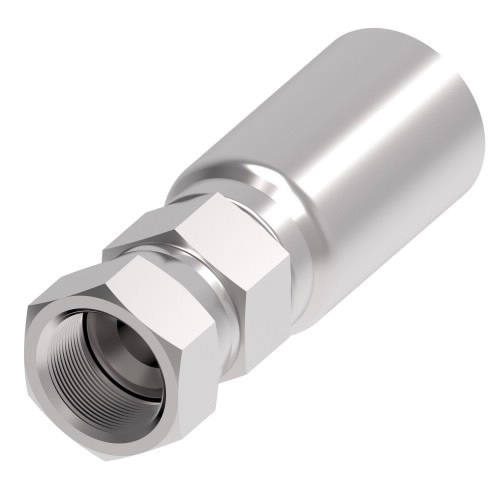

Aeroquip® 90V Zinc Clear Trivalent Chromate Carbon Steel Female SAE 37 deg JIC Swivel Permanent Swage Straight Hose Fitting, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 90V04-045400-0
  • MPN: 90V04-045400-0
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Swage Straight Hose Fitting, 90V Series, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 5/8 in, Cut-Off Factor: 1.45 in, Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: 3V10 and 3EV0 Hoses, Dimensions: 2.53 in L

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      5/8 in
Cut-Off Factor      :      1.45 in
Material      :      Carbon Steel
Finish      :      Zinc Clear Trivalent Chromate
For Use With      :      3V10 and 3EV0 Hoses
Series      :      90V
Dimensions      :      2.53 in L
Fitting Type      :      Straight Hose Fitting
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
