Aeroquip® B-1305

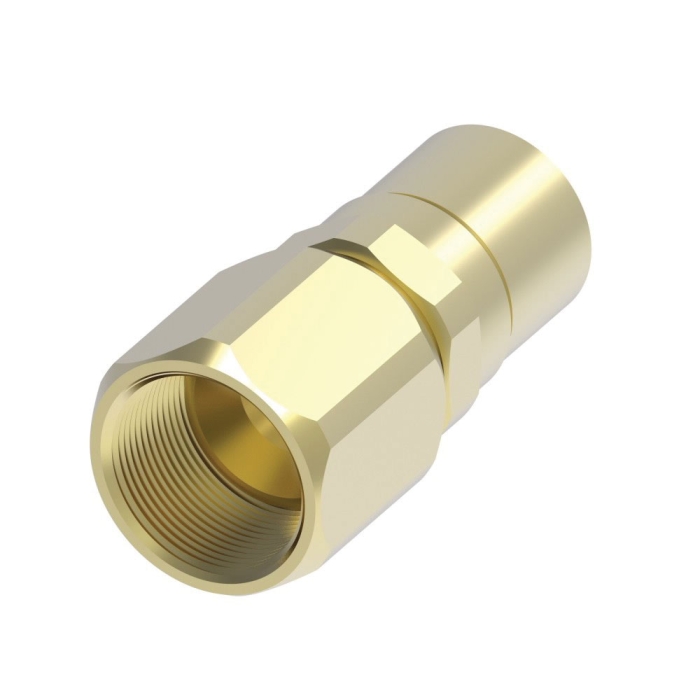

Aeroquip® Everswage B-1305 Brass Female 37 deg JIC Swivel Permanent Swage Straight Hose Fitting, 1/4 x 5/16 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER B-1305
  • MPN: B-1305
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Permanent Swage Straight Hose Fitting, Hose Connection: 1/4 in, Connection Type 1: Hose, Gender 1: Male, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/16 in, Nominal Size: 5/16 in, Thread Size 2: 1/2-20, Hex Size: 5/8 x 9/16 in, Cut-Off Factor: 0.94 in, Brass, For Use With: Everflex STW, SCTW, B, M, S, and SC Series Hoses, Dimensions: 1.63 in L

California residents see Prop 65 WARNINGS

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      5/16 in
Nominal Size      :      5/16 in
Thread Size 2      :      1/2-20
Hex Size      :      5/8 x 9/16 in
Cut-Off Factor      :      0.94 in
Material      :      Brass
For Use With      :      Everflex STW, SCTW, B, M, S, and SC Series Hoses
Dimensions      :      1.63 in L
Fitting Type      :      Straight Hose Fitting
Connection Type 1      :      Hose
Gender 1      :      Male
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      5/16 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory

Applications: High-temperature hydraulics, chemical transfer, clean FDA applications, steam and corrosive environment
