Aeroquip® NJ-8-B
Send Print
  1. pin-int

Aeroquip® NJ-8-B

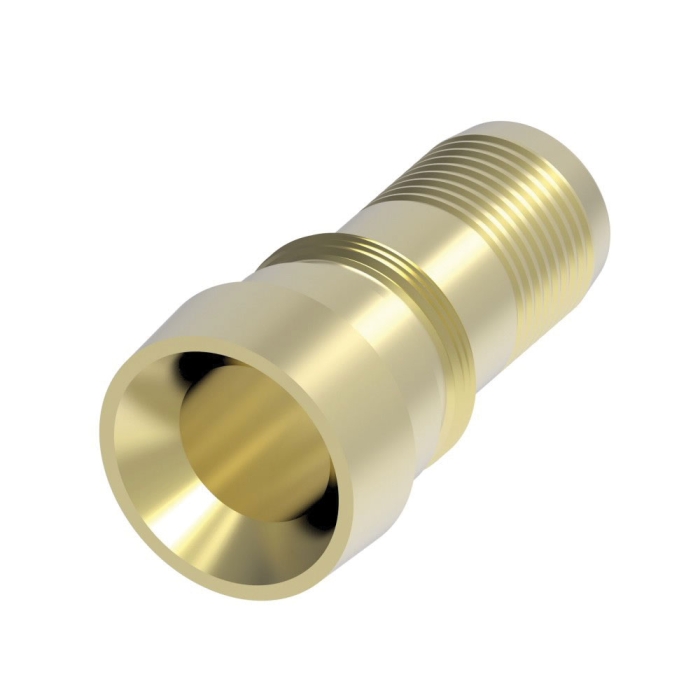

Aeroquip® Everswage NJ Series Brass Female 37 deg JIC Permanent Swage Straight Hose Insert, 13/32 x 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NJ-8-B
  • MPN: NJ-8-B
  • UPC: 678146033918
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Permanent Swage Straight Hose Insert, NJ Series, Hose Connection: 13/32 in, Connection Type 1: Hose, Connection Size 1: 13/32 in, Connection Type 2: 37 deg JIC, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Brass, For Use With: Everflex STW, SCTW, B, M, S, and SC Series Hoses, Dimensions: 1.58 in L x 0.65 in W x 0.65 in H

California residents see Prop 65 WARNINGS

Hose Connection      :      13/32 in
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Material      :      Brass
For Use With      :      Everflex STW, SCTW, B, M, S, and SC Series Hoses
Series      :      NJ
Dimensions      :      1.58 in L x 0.65 in W x 0.65 in H
Fitting Type      :      Hose Insert
Connection Type 1      :      Hose
Connection Size 1      :      13/32 in
Connection 2      :      1/2 in JIC
Connection Type 2      :      37 deg JIC

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
