Aeroquip® NJC-4-C AER NJC-4-C | Tipco Technologies
Aeroquip® NJC-4-C
Send Print
  1. pin-int

Aeroquip® NJC-4-C

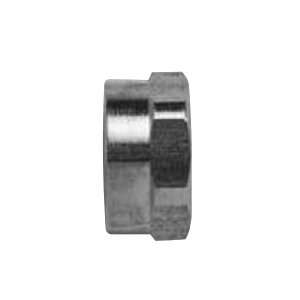

Aeroquip® Everswage NJC Carbon Steel Female 37 deg JIC Short Collar, 3/16 x 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NJC-4-C
  • MPN: NJC-4-C
  • UPC: 678146033932
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Short Collar, NJC Series, Hose Connection: 3/16 in, Connection Type 1: Hose, Connection Size 1: 3/16 in, Hose Dash Size: 03, Connection Type 2: 37 deg JIC, Gender 2: Female, Connection Size 2: 1/4 in, Carbon Steel, For Use With: Everflex STW, SCTW, B, M, S, and SC Series Hoses

Hose Connection      :      3/16 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Material      :      Carbon Steel
For Use With      :      Everflex STW, SCTW, B, M, S, and SC Series Hoses
Series      :      NJC
Fitting Type      :      Short Collar
Connection Type 1      :      Hose
Connection Size 1      :      3/16 in
Hose Dash Size      :      03
Connection 2      :      1/4 in JIC
Connection Type 2      :      37 deg JIC

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
