Aeroquip® NJIC-3-S

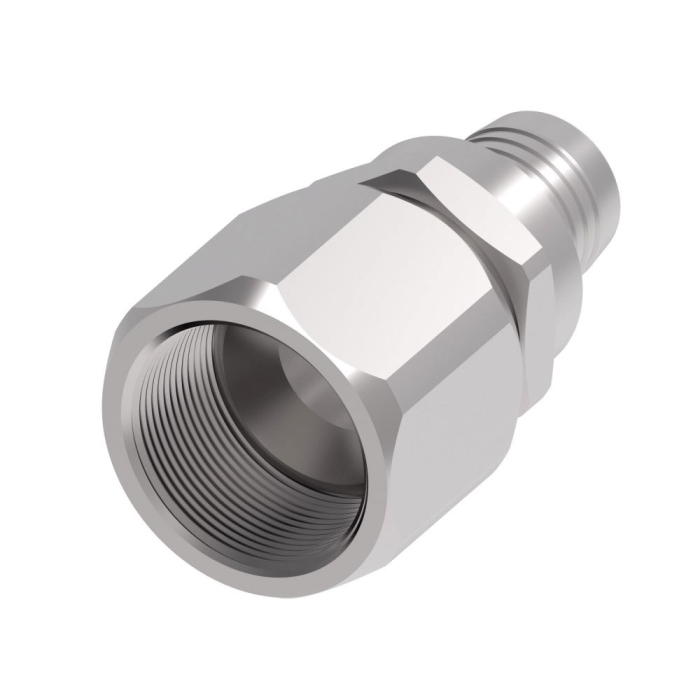

Aeroquip® Everswage NJIC Stainless Steel Female JIC Permanent Swage Straight Hose Insert, 3/16 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NJIC-3-S
  • MPN: NJIC-3-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Permanent Swage Straight Hose Insert, NJIC Series, Hose Connection: 3/16 in, Connection Type 1: Hose, Connection Size 1: 3/16 in, Hose Dash Size: 03, Connection Type 2: JIC, Gender 2: Female, Connection Size 2: 3/16 in, Nominal Size: 3/16 in, Thread Size 2: 3/8-24, Hex Size: 0.43 in, Stainless Steel

Hose Connection      :      3/16 in
Gender 2      :      Female
Connection Size 2      :      3/16 in
Nominal Size      :      3/16 in
Thread Size 2      :      3/8-24
Hex Size      :      0.43 in
Material      :      Stainless Steel
Series      :      NJIC
Fitting Type      :      Hose Insert
Connection Type 1      :      Hose
Connection Size 1      :      3/16 in
Hose Dash Size      :      03
Connection 2      :      3/16 in JIC
Connection Type 2      :      JIC

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
