Aeroquip® NJICSAE-4-B
Send Print
  1. pin-int

Aeroquip® NJICSAE-4-B

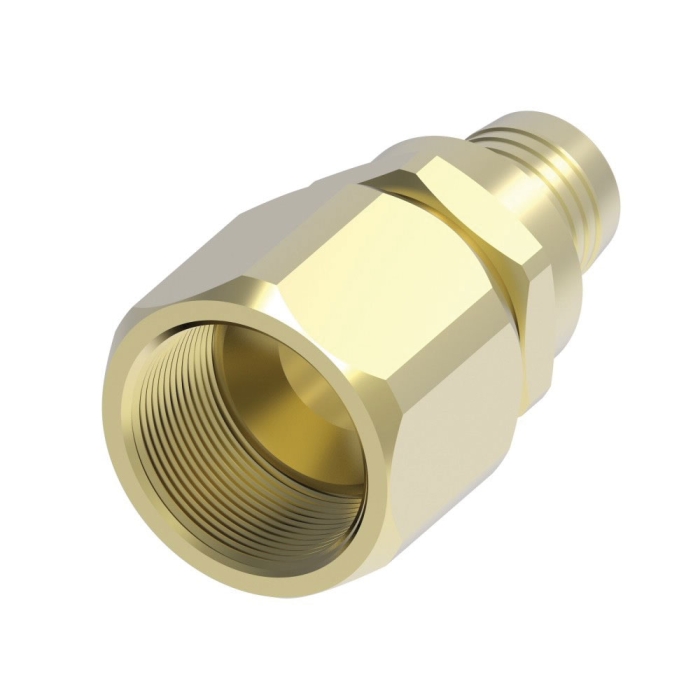

Aeroquip® Everswage NJICSAE-4-B Brass Female SAE 45 deg JIC Swage Straight Hose Insert, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NJICSAE-4-B
  • MPN: NJICSAE-4-B
  • UPC: 678146040855
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Swage Straight Hose Insert, Hose Connection: 1/4 in, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg JIC, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.56 x 0.5 in, Brass, Dimensions: 1.58 in L x 0.56 in W x 0.64 in H

California residents see Prop 65 WARNINGS

Hose Connection      :      1/4 in
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.56 x 0.5 in
Material      :      Brass
Dimensions      :      1.58 in L x 0.56 in W x 0.64 in H
Fitting Type      :      Hose Insert
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in JIC
Connection Type 2      :      SAE 45 deg JIC

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
