Aeroquip® NM4-6-B
Send Print
  1. pin-int

Aeroquip® NM4-6-B

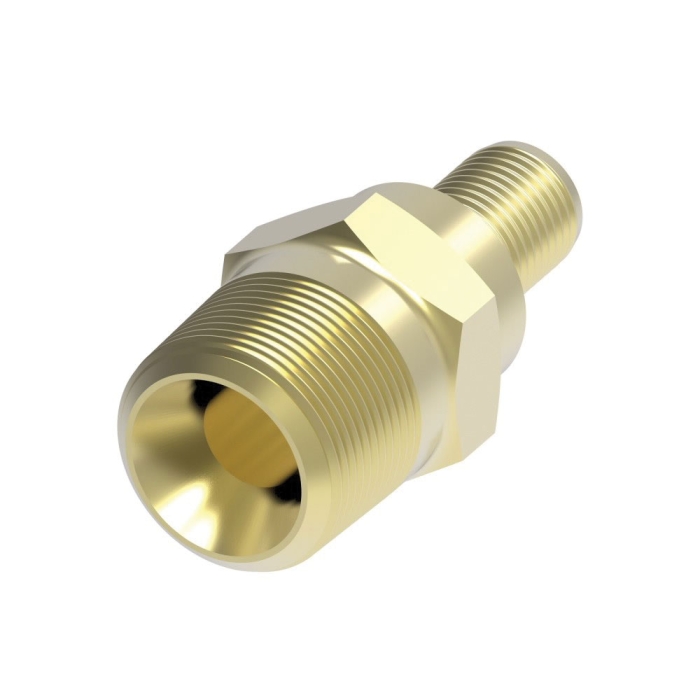

Aeroquip® Everswage NM Series Brass MNPTF Swage Straight Hose Insert, 5/16 x 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER NM4-6-B
  • MPN: NM4-6-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Swage Straight Hose Insert, NM Series, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Brass

California residents see Prop 65 WARNINGS

Hose Connection      :      5/16 in
Gender 2      :      Male
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Material      :      Brass
Series      :      NM
Fitting Type      :      Hose Insert
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory

Applications: For aerospace, food and beverage, machine building, and marine
