Aeroquip® S-1312
Send Print
  1. pin-int

Aeroquip® S-1312

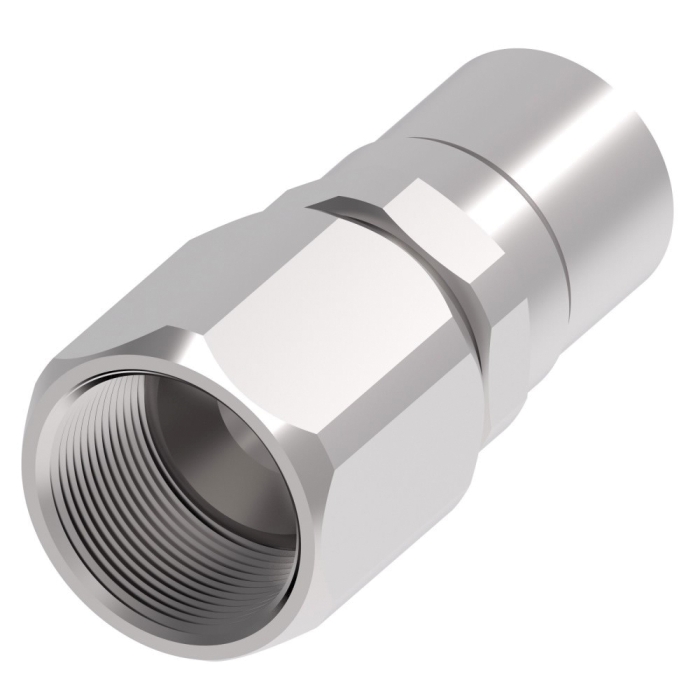

Aeroquip® Everswage S-1312 Stainless Steel Female 37 deg JIC Swivel Swage Straight Hose Fitting, 5/8 x 3/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER S-1312
  • MPN: S-1312
  • UPC: 678146033253
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Everswage Swage Straight Hose Fitting, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Hex Size: 1.0625 x 1.25 in, Cut-Off Factor: 1.38 in, Stainless Steel, For Use With: STW, SCTW, B, M, S, and SC Series Everflex® PTFE Hoses, Dimensions: 2.25 in L x 1.25 in W x 1.44 in H

Hose Connection      :      5/8 in
Gender 2      :      Female
Connection Size 2      :      3/4 in
Hex Size      :      1.0625 x 1.25 in
Cut-Off Factor      :      1.38 in
Material      :      Stainless Steel
For Use With      :      STW, SCTW, B, M, S, and SC Series Everflex® PTFE Hoses
Dimensions      :      2.25 in L x 1.25 in W x 1.44 in H
Fitting Type      :      Straight Hose Fitting
Connection Type 1      :      Hose
Connection Size 1      :      5/8 in
Hose Dash Size      :      10
Connection 2      :      3/4 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel

The Danfoss Everswage fittings are permanently attached to smooth bore Teflon hose using a swaging process. Multiple configurations are available as well as both components and complete fitting assemblies.

  • Mix and match components for optimum inventory
