Aeroquip® 4401-4S AER 4401-4S. | Tipco Technologies
Aeroquip® 4401-4S
Send Print
  1. pin-int

Aeroquip® 4401-4S

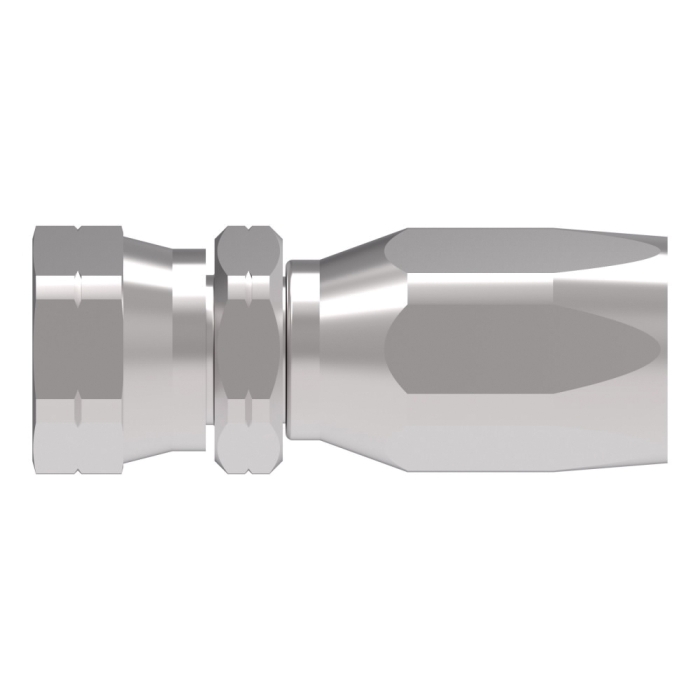

Aeroquip® 4401 Dura-Kote Carbon Steel Female SAE 45 deg Swivel 100R5 Reusable Straight Hose Fitting, 1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4401-4S.
  • MPN: 4401-4S
  • UPC: 678146138064
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable Straight Hose Fitting, Series: 4401, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 0.62 x 0.56 in, Cut-Off Factor: 1.22 in, Carbon Steel, Finish: Dura-Kote, For Use With: 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350, and FC355 Series Hoses, Dimensions: 1.97 in L x 0.62 in W x 0.62 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1/4 in
Nominal Size      :      1/4 in
Thread Size 2      :      7/16-20
Hex Size      :      0.62 x 0.56 in
Cut-Off Factor      :      1.22 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Series      :      4401
Dimensions      :      1.97 in L x 0.62 in W x 0.62 in H
Hose Connection      :      1/4 in in
Connection Type 1      :      Hose
Connection Size 1      :      1/4 in
Hose Dash Size      :      04
Connection 2      :      1/4 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel

Warranty: 5 Years Limited
