Aeroquip® 1241-10B
Send Print
  1. pin-int

Aeroquip® 1241-10B

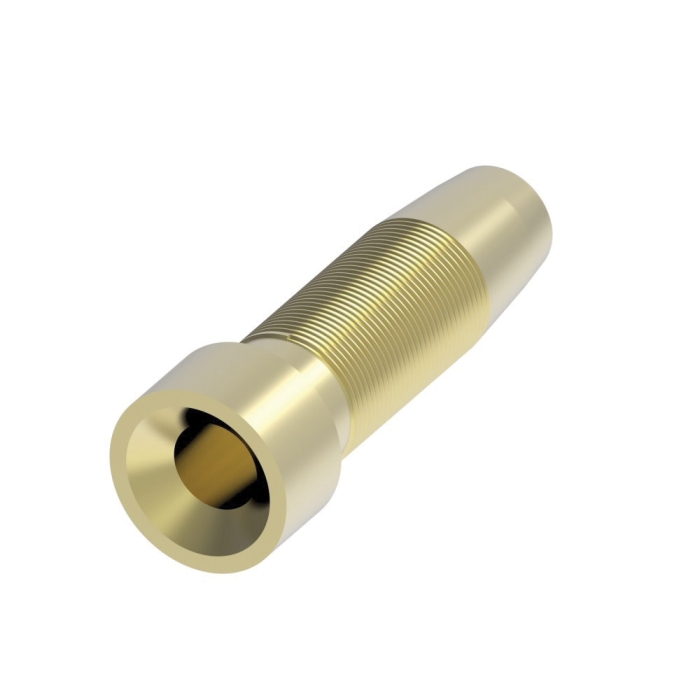

Aeroquip® 1241 Zinc-Plated Brass Male SAE 45 deg Swivel Reusable Straight Hose Fitting, 5/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1241-10B
  • MPN: 1241-10B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Straight Hose Fitting, 1241 Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: SAE 45 deg Swivel, Gender 2: Male, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 11/16-24, Cut-Off Factor: 0.444 in, Brass, Finish: Zinc-Plated, For Use With: 1503 Series Hoses, Dimensions: 2.022 in L x 0.7815 in W x 0.7815 in H

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Male
Connection Size 2      :      5/8 in
Nominal Size      :      5/8 in
Thread Size 2      :      11/16-24
Cut-Off Factor      :      0.444 in
Material      :      Brass
Finish      :      Zinc-Plated
For Use With      :      1503 Series Hoses
Series      :      1241
Dimensions      :      2.022 in L x 0.7815 in W x 0.7815 in H
Hose Connection      :      5/8 in
Connection Type 1      :      Hose
Connection Size 1      :      5/8 in
Hose Dash Size      :      10
Connection 2      :      5/8 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel
