Aeroquip® 1251-24S
Send Print
  1. pin-int

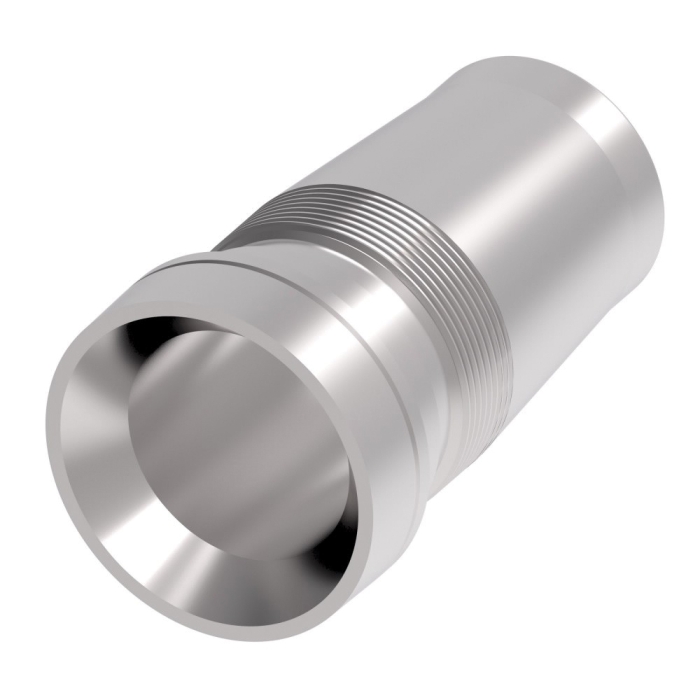

Aeroquip® 1251-24S

Aeroquip® 1251 Dura-Kote Carbon Steel Male SAE 37 deg JIC Swivel Reusable Straight Hose Nipple, 1-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1251-24S
  • MPN: 1251-24S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Straight Hose Nipple, 1251 Series, Hose Connection: 1-1/2 in, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Male, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-9/16-18, 1500 psi, Cut-Off Factor: 0.814 in, Carbon Steel, Finish: Dura-Kote, For Use With: 1503 Series Hoses, Dimensions: 2.493 in L x 1.62 in W x 1.62 in H

Fitting Type      :      Straight Nipple
Gender 2      :      Male
Connection Size 2      :      1-1/2 in
Nominal Size      :      1-1/2 in
Thread Size 2      :      1-9/16-18
Pressure Rating      :      1500 psi
Cut-Off Factor      :      0.814 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      1503 Series Hoses
Series      :      1251
Dimensions      :      2.493 in L x 1.62 in W x 1.62 in H
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Hose Dash Size      :      24
Connection 2      :      1-1/2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
