Aeroquip® 190260-20S
Send Print
  1. pin-int

Aeroquip® 190260-20S

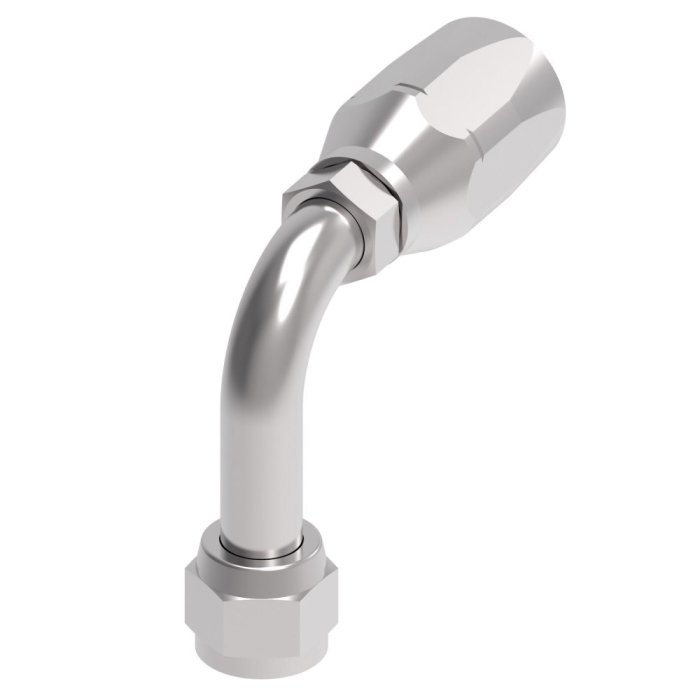

Aeroquip® 190260 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R5 Reusable 90 deg Long Drop Elbow, 1-1/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 190260-20S
  • MPN: 190260-20S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable 90 deg Long Drop Elbow, 190260 Series, Hose Connection: 1-1/4 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 2 x 1-3/4 in, 2000 psi, Cut-Off Factor: 2.65 in, Carbon Steel, Finish: Dura-Kote, For Use With: 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses, Dimensions: 5.02 in L x 2 in W x 7.04 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      1-1/4 in
Nominal Size      :      1-1/4 in
Thread Size 2      :      1-5/8-12
Hex Size      :      2 x 1-3/4 in
Pressure Rating      :      2000 psi
Cut-Off Factor      :      2.65 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses
Series      :      190260
Dimensions      :      5.02 in L x 2 in W x 7.04 in H
Hose Connection      :      1-1/4 in
Connection Type 1      :      Hose
Gender 1      :      Female
Connection Size 1      :      1-1/4 in
Hose Dash Size      :      20
Connection 2      :      1-1/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
