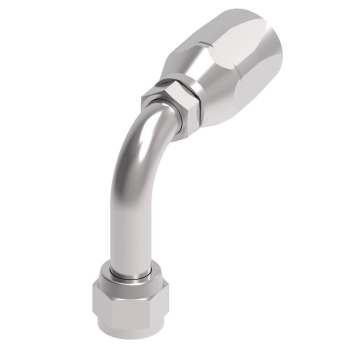

Aeroquip® 100R5 Reusable 90 deg Long Drop Elbow, 190260 Series, Hose Connection: 1 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1.5 x 1.44 in, 2500 psi, Cut-Off Factor: 2.28 in, Carbon Steel, Finish: Dura-Kote, For Use With: 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses, Dimensions: 4.3 in L x 1.5 in W x 5.9 in H
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1 in |
| Nominal Size | : | 1 in |
| Thread Size 2 | : | 1-5/16-12 |
| Hex Size | : | 1.5 x 1.44 in |
| Pressure Rating | : | 2500 psi |
| Cut-Off Factor | : | 2.28 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses |
| Series | : | 190260 |
| Dimensions | : | 4.3 in L x 1.5 in W x 5.9 in H |
| Hose Connection | : | 1 in |
| Connection Type 1 | : | Hose |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1 in |
| Hose Dash Size | : | 16 |
| Connection 2 | : | 1 in JIC Swivel |
| Connection Type 2 | : | SAE 37 deg JIC Swivel |
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- Engineered to provide peak performance with Danfoss's core braided hose products
- Can be assembled in the field without special tooling
- Reduced downtime
- Quick repair
Applications: For sustainable approach to designing hydraulic systems
