Aeroquip® 190718-8S AER 190718-8S | Tipco Technologies
Aeroquip® 190718-8S
Send Print
  1. pin-int

Aeroquip® 190718-8S

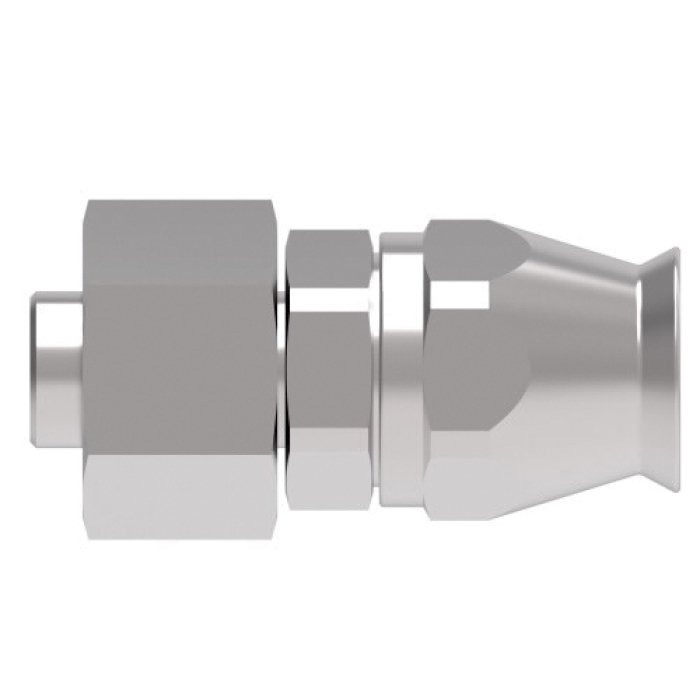

Aeroquip® 190718 Dura-Kote Carbon Steel Female SAE Super Gem Reusable Straight Ball Sleeve, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 190718-8S
  • MPN: 190718-8S
  • UPC: 678146044839
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Super Gem Reusable Straight Ball Sleeve, 190718 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE Threaded, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 11/16-20, Hex Size: 0.81 x 0.88 in, Cut-Off Factor: 1.44 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2807, FC465, and S-TW PTFE Hoses, Dimensions: 2.07 in L x 0.88 in W x 0.88 in H, Dimension Standards: SAE 100R14

Fitting Type      :      Ball Sleeve
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      11/16-20
Hex Size      :      0.81 x 0.88 in
Cut-Off Factor      :      1.44 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2807, FC465, and S-TW PTFE Hoses
Series      :      190718
Dimensions      :      2.07 in L x 0.88 in W x 0.88 in H
Dimension Standards      :      SAE 100R14
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Gender 1      :      Female
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in Threaded
Connection Type 2      :      SAE Threaded
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
