Aeroquip® 190772-6S
Send Print
  1. pin-int

Aeroquip® 190772-6S

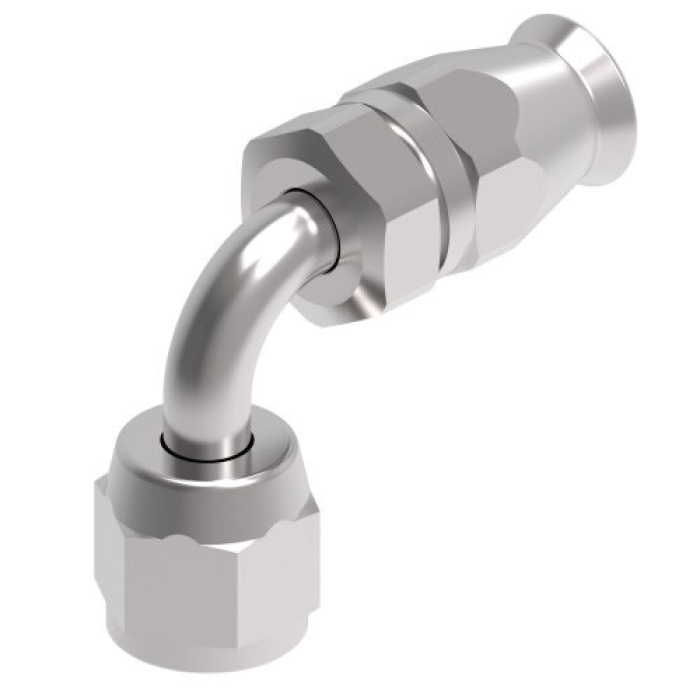

Aeroquip® 190772 Dura-Kote Carbon Steel Female SAE 45 deg/37 deg JIC Swivel Super Gem Reusable 90 deg Elbow, 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 190772-6S
  • MPN: 190772-6S
  • UPC: 678146044860
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Super Gem Reusable 90 deg Elbow, 190772 Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.69 in, Cut-Off Factor: 1.1 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2807, FC465, and S-TW PTFE Hoses, Dimensions: 1.96 in L x 0.69 in W x 1.59 in H, Dimension Standards: SAE 100R14

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      9/16-18
Hex Size      :      0.69 in
Cut-Off Factor      :      1.1 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2807, FC465, and S-TW PTFE Hoses
Series      :      190772
Dimensions      :      1.96 in L x 0.69 in W x 1.59 in H
Dimension Standards      :      SAE 100R14
Hose Connection      :      3/8 in
Connection Type 1      :      Hose
Gender 1      :      Female
Connection Size 1      :      3/8 in
Hose Dash Size      :      06
Connection 2      :      3/8 in JIC Swivel
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
