Aeroquip® 1RA16FJA16
Send Print
  1. pin-int

Aeroquip® 1RA16FJA16

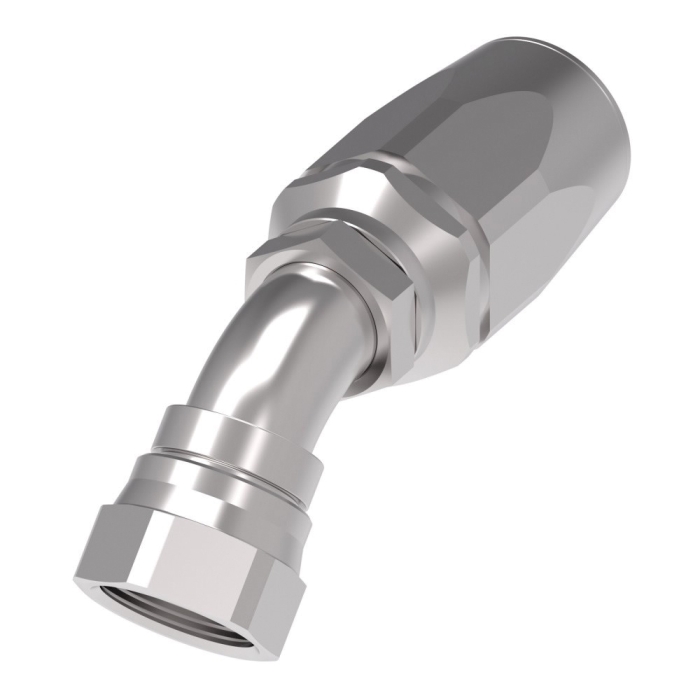

Aeroquip® 1R Series Zinc-Plated Carbon Steel Female SAE 37 deg JIC Swivel Reusable Hose 45 deg Elbow, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 1RA16FJA16
  • MPN: 1RA16FJA16
  • UPC: 678146193339
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Hose 45 deg Elbow, 1R Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1.5 x 1.69 in, Cut-Off Factor: 2.97 in, Carbon Steel, Finish: Zinc-Plated, For Use With: GH681 and EC115 Series Hoses, Dimensions: 6.38 in L x 1.69 in W x 3.27 in H

Fitting Type      :      45 deg Elbow
Gender 2      :      Female
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-5/16-12
Hex Size      :      1.5 x 1.69 in
Cut-Off Factor      :      2.97 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      GH681 and EC115 Series Hoses
Series      :      1R
Dimensions      :      6.38 in L x 1.69 in W x 3.27 in H
Hose Connection      :      1 in
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
