Aeroquip® 2RA16FJB16 AER 2RA16FJB16 | Tipco Technologies
Aeroquip® 2RA16FJB16
Send Print
  1. pin-int

Aeroquip® 2RA16FJB16

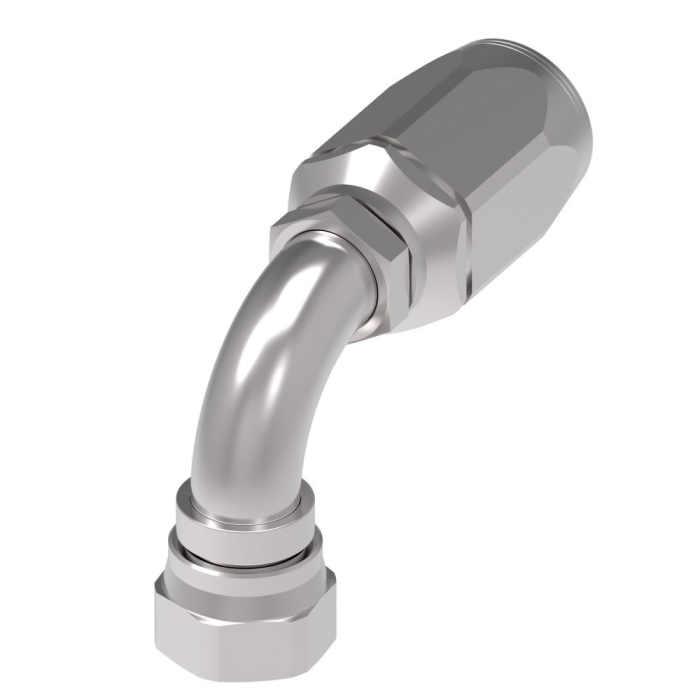

Aeroquip® 2R Series Zinc-Plated Carbon Steel Female SAE 37 deg JIC Swivel Reusable 90 deg Short Drop Elbow, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2RA16FJB16
  • MPN: 2RA16FJB16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable 90 deg Short Drop Elbow, 2R Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1-1/2 x 1-3/4 in, Cut-Off Factor: 2.86 in, Carbon Steel, Finish: Zinc-Plated, For Use With: GH781 and EC215 Series Hoses, Dimensions: 5.59 in L x 1.75 in W x 3.87 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-5/16-12
Hex Size      :      1-1/2 x 1-3/4 in
Cut-Off Factor      :      2.86 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      GH781 and EC215 Series Hoses
Series      :      2R
Dimensions      :      5.59 in L x 1.75 in W x 3.87 in H
Hose Connection      :      1 in
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
