Aeroquip® 2RA8FJA8
Send Print
  1. pin-int

Aeroquip® 2RA8FJA8

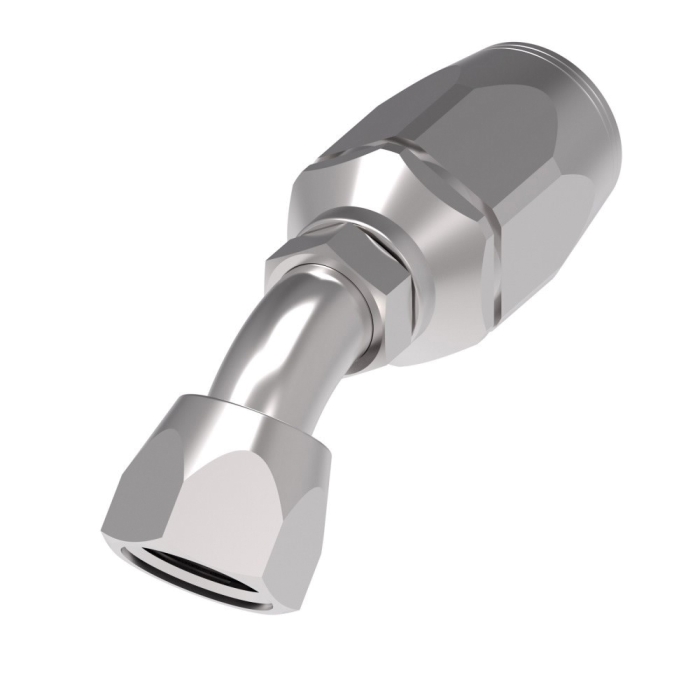

Aeroquip® 2R Series Zinc-Plated Carbon Steel Female SAE 37 deg JIC Swivel Reusable Hose 45 deg Elbow, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2RA8FJA8
  • MPN: 2RA8FJA8
  • UPC: 678146193186
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Hose 45 deg Elbow, 2R Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 0.88 x 1.125 in, Cut-Off Factor: 1.78 in, Carbon Steel, Finish: Zinc-Plated, For Use With: GH781 and EC215 Series Hoses, Dimensions: 3.73 in L x 1.125 in W x 1.55 in H

Fitting Type      :      45 deg Elbow
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      0.88 x 1.125 in
Cut-Off Factor      :      1.78 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      GH781 and EC215 Series Hoses
Series      :      2R
Dimensions      :      3.73 in L x 1.125 in W x 1.55 in H
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
