Aeroquip® 401-8B AER 401-8B | Tipco Technologies
Aeroquip® 401-8B
Send Print
  1. pin-int

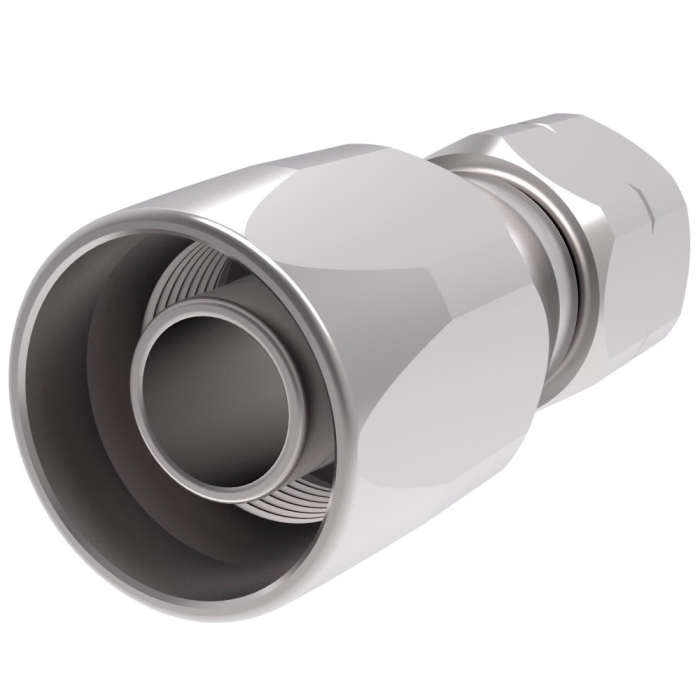

Aeroquip® 401-8B

Aeroquip® 401 Brass Female SAE 45 deg Swivel 100R5 Reusable Straight Hose Fitting, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 401-8B
  • MPN: 401-8B
  • UPC: 678146054371
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable Straight Hose Fitting, 401 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 0.875 x 0.9375 in, Cut-Off Factor: 1.38 in, Brass, For Use With: 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses, Dimensions: 2.52 in L x 0.9375 in W x 0.9375 in H, Dimension Standards: SAE 100R5

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      0.875 x 0.9375 in
Cut-Off Factor      :      1.38 in
Material      :      Brass
For Use With      :      1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses
Series      :      401
Dimensions      :      2.52 in L x 0.9375 in W x 0.9375 in H
Dimension Standards      :      SAE 100R5
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
