Aeroquip® 4103-8-8S
Send Print
  1. pin-int

Aeroquip® 4103-8-8S

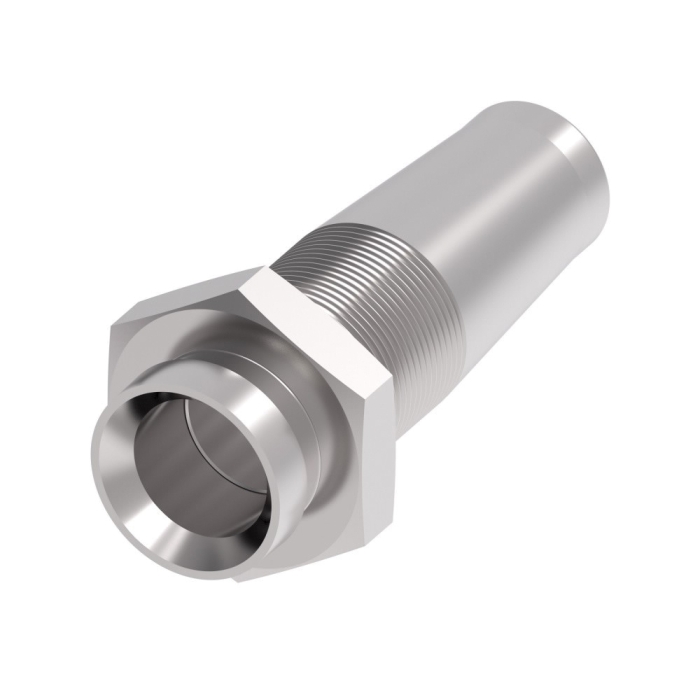

Aeroquip® 4103 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel Reusable Hose Nipple Assembly, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4103-8-8S
  • MPN: 4103-8-8S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Hose Nipple Assembly, 4103 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 5/8-18, Hex Size: 7/8 in, Cut-Off Factor: 0.866 in, Carbon Steel, Finish: Dura-Kote, For Use With: 1R and 2R Series Reusable Fittings, 1509 Series Hoses, Dimensions: 2.796 in L x 0.875 in W x 0.875 in H

Fitting Type      :      Nipple
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      5/8-18
Hex Size      :      7/8 in
Cut-Off Factor      :      0.866 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      1R and 2R Series Reusable Fittings, 1509 Series Hoses
Series      :      4103
Dimensions      :      2.796 in L x 0.875 in W x 0.875 in H
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
