Aeroquip® 411-8S
Send Print
  1. pin-int

Aeroquip® 411-8S

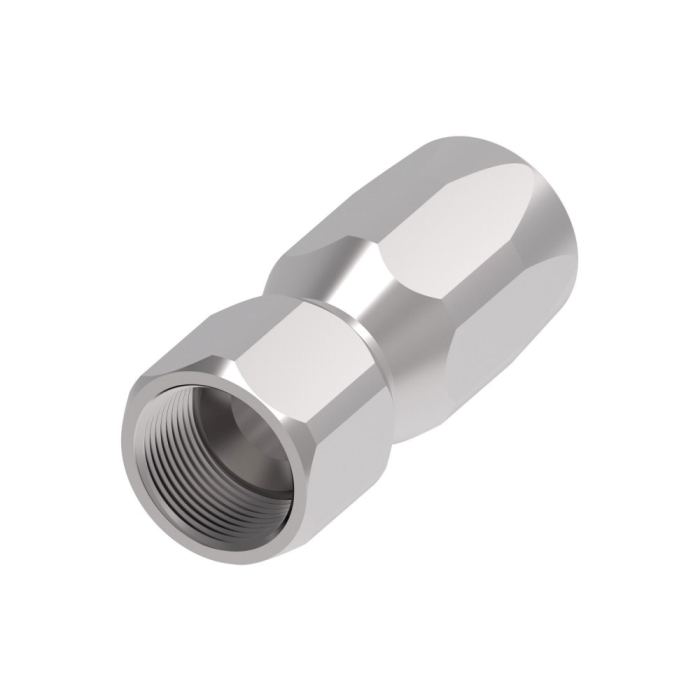

Aeroquip® 411 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R5 Reusable Straight Hose Fitting, 1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 411-8S
  • MPN: 411-8S
  • UPC: 678146054616
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable Straight Hose Fitting, 411 Series, Hose Connection: 1/2 in, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-18, Hex Size: 0.875 x 0.937 in, 4000 psi, Cut-Off Factor: 1.38 in, Carbon Steel, Finish: Dura-Kote, For Use With: 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses, Dimensions: 2.52 in L

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-18
Hex Size      :      0.875 x 0.937 in
Pressure Rating      :      4000 psi
Cut-Off Factor      :      1.38 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Series      :      411
Dimensions      :      2.52 in L
Hose Connection      :      1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1/2 in
Hose Dash Size      :      08
Connection 2      :      1/2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
