Aeroquip® 259-411-24

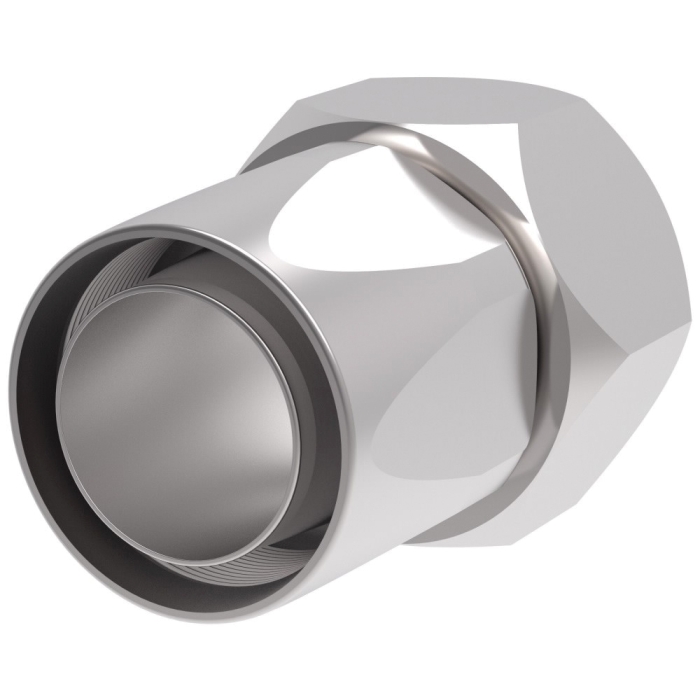

Aeroquip® 411 Passivate Stainless Steel Female SAE 37 deg JIC Swivel Reusable Straight Hose Fitting, 1-1/2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 259-411-24
  • MPN: 259-411-24
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Reusable Straight Hose Fitting, 411 Series, Hose Connection: 1-1/2 in, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-7/8-12, Hex Size: 2.25 x 1.937 in, 2100 psi, Cut-Off Factor: 1.83 in, Stainless Steel, Finish: Passivate, For Use With: 1503 Series Hoses, Dimensions: 3.28 in L x 2.25 in W x 2.25 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1-1/2 in
Nominal Size      :      1-1/2 in
Thread Size 2      :      1-7/8-12
Hex Size      :      2.25 x 1.937 in
Pressure Rating      :      2100 psi
Cut-Off Factor      :      1.83 in
Material      :      Stainless Steel
Finish      :      Passivate
For Use With      :      1503 Series Hoses
Series      :      411
Dimensions      :      3.28 in L x 2.25 in W x 2.25 in H
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Hose Dash Size      :      24
Connection 2      :      1-1/2 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
