Aeroquip® 259-4411-10
Send Print
  1. pin-int

Aeroquip® 259-4411-10

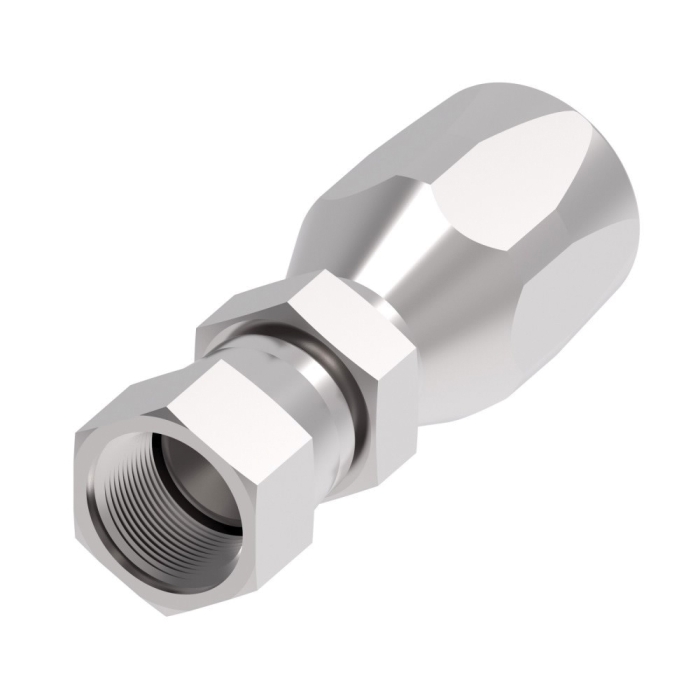

Aeroquip® 4411 Passivate Stainless Steel Female SAE 37 deg JIC Swivel 100R5 Reusable Straight Hose Fitting, 5/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 259-4411-10
  • MPN: 259-4411-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable Straight Hose Fitting, 4411 Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 1 x 1.12 in, 3000 psi, Cut-Off Factor: 1.81 in, Stainless Steel, Finish: Passivate, For Use With: 1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses, Dimensions: 3.1 in L x 1.12 in W x 1.29 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      5/8 in
Nominal Size      :      5/8 in
Thread Size 2      :      7/8-14
Hex Size      :      1 x 1.12 in
Pressure Rating      :      3000 psi
Cut-Off Factor      :      1.81 in
Material      :      Stainless Steel
Finish      :      Passivate
For Use With      :      1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355, and FC802 Series Hoses
Series      :      4411
Dimensions      :      3.1 in L x 1.12 in W x 1.29 in H
Hose Connection      :      5/8 in
Connection Type 1      :      Hose
Connection Size 1      :      5/8 in
Hose Dash Size      :      10
Connection 2      :      5/8 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
