Aeroquip® 4775-32S

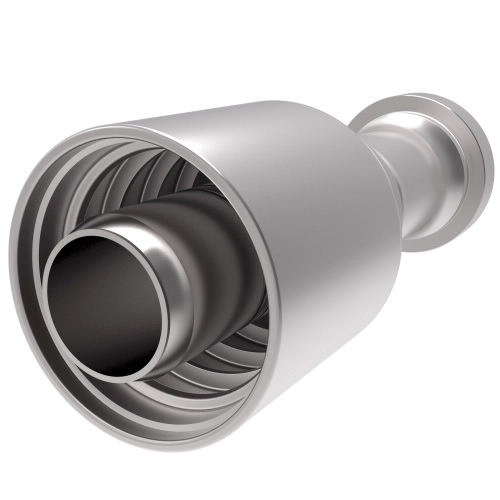

Aeroquip® 4775 Zinc-Plated Carbon Steel SAE Code 61 Split Flange 100R5 Reusable Straight Hose Fitting, 2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4775-32S
  • MPN: 4775-32S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable Straight Hose Fitting, 4775 Series, Hose Connection: 2 in, Connection Type 1: Hose, Connection Size 1: 2 in, Hose Dash Size: 32, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 2 in, Cut-Off Factor: 3.08 in, Carbon Steel, Finish: Zinc-Plated, For Use With: 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses, Dimensions: 4.92 in L, Dimension Standards: SAE J518, SAE 100R5

Fitting Type      :      Straight Hose Fitting
Connection Size 2      :      2 in
Cut-Off Factor      :      3.08 in
Material      :      Carbon Steel
Finish      :      Zinc-Plated
For Use With      :      302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Series      :      4775
Dimensions      :      4.92 in L
Dimension Standards      :      SAE J518, SAE 100R5
Hose Connection      :      2 in
Connection Type 1      :      Hose
Connection Size 1      :      2 in
Hose Dash Size      :      32
Connection 2      :      2 in Code 61
Connection Type 2      :      SAE Code 61 Flange
