Aeroquip® 4777-32-24S
Send Print
  1. pin-int

Aeroquip® 4777-32-24S

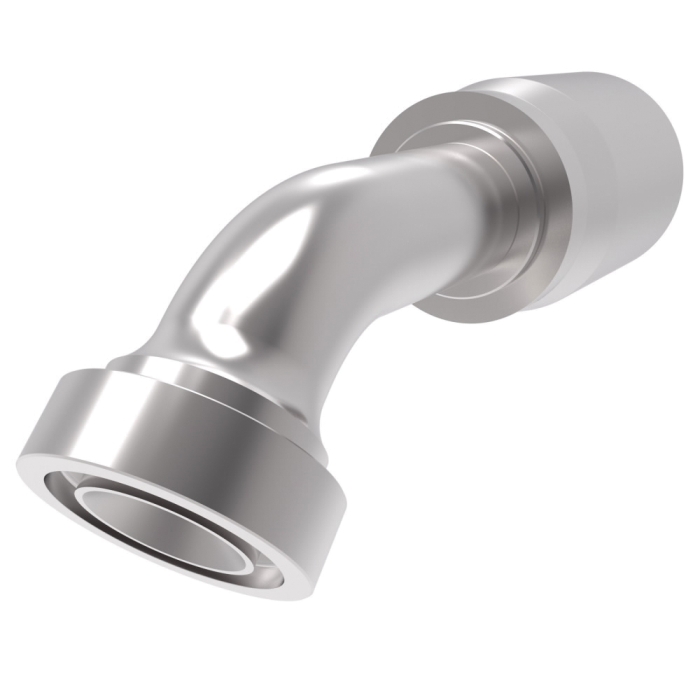

Aeroquip® 4777 Dura-Kote Carbon Steel SAE Code 61 Split Flange 100R5 Reusable 45 deg Short Elbow, 1-1/2 x 2 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4777-32-24S
  • MPN: 4777-32-24S
  • UPC: 678146056429
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R5 Reusable 45 deg Short Elbow, 4777 Series, Hose Connection: 1-1/2 in, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: SAE Code 61 Flange, Connection Size 2: 2 in, Hex Size: 1.94 in, Cut-Off Factor: 2.56 in, Carbon Steel, Finish: Dura-Kote, For Use With: 302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses, Dimensions: 5.78 in L x 2.81 in W x 3.79 in H, Dimension Standards: SAE J518

Fitting Type      :      45 deg Elbow
Connection Size 2      :      2 in
Hex Size      :      1.94 in
Cut-Off Factor      :      2.56 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Series      :      4777
Dimensions      :      5.78 in L x 2.81 in W x 3.79 in H
Dimension Standards      :      SAE J518
Hose Connection      :      1-1/2 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/2 in
Hose Dash Size      :      24
Connection 2      :      2 in Code 61
Connection Type 2      :      SAE Code 61 Flange
