Aeroquip® 63-190600-5 AER 63-190600-5 | Tipco Technologies
Aeroquip® 63-190600-5
Send Print
  1. pin-int

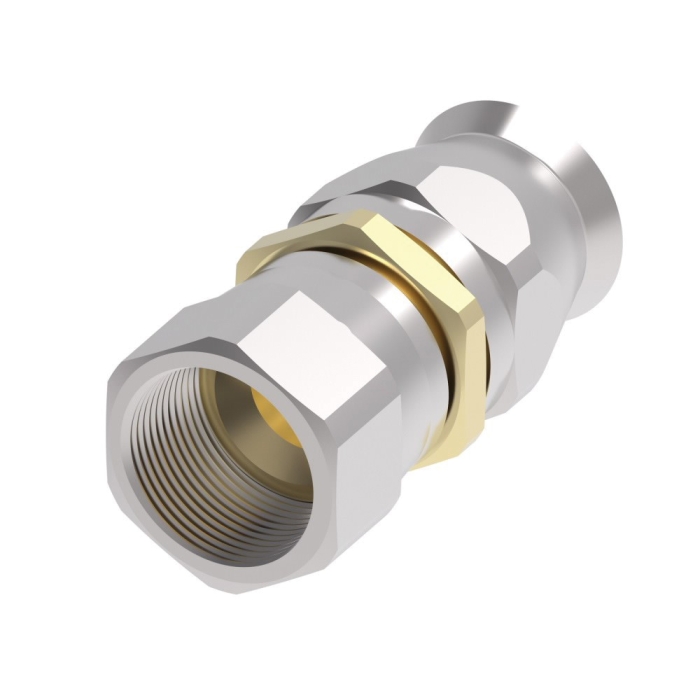

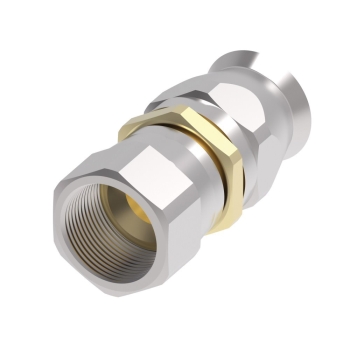

Aeroquip® 63-190600-5

Aeroquip® 63-190600 Zinc Clear Trivalent Chromate Brass/Carbon Steel Female SAE 37 deg JIC Swivel 100R14 Super Gem Reusable Straight Hose Fitting, 5/16 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 63-190600-5
  • MPN: 63-190600-5
  • UPC: 678146138897
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R14 Super Gem Reusable Straight Hose Fitting, 63-190600 Series, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 5/16 in, Nominal Size: 5/16 in, Thread Size 2: 1/2-20, Hex Size: 0.62 in, Cut-Off Factor: 1.17 in, Brass/Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: 2807, FC465, and S-TW PTFE Hoses, Dimensions: 1.58 in L x 1.56 in W x 1.56 in H

California residents see Prop 65 WARNINGS

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      5/16 in
Nominal Size      :      5/16 in
Thread Size 2      :      1/2-20
Hex Size      :      0.62 in
Cut-Off Factor      :      1.17 in
Material      :      Brass/Carbon Steel
Finish      :      Zinc Clear Trivalent Chromate
For Use With      :      2807, FC465, and S-TW PTFE Hoses
Series      :      63-190600
Dimensions      :      1.58 in L x 1.56 in W x 1.56 in H
Hose Connection      :      5/16 in
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      5/16 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • Engineered to provide peak performance with Danfoss's core braided hose products
  • Can be assembled in the field without special tooling
  • Reduced downtime
  • Quick repair

Applications: For sustainable approach to designing hydraulic systems
