Aeroquip® EJ5306-1616S
Send Print
  1. pin-int

Aeroquip® EJ5306-1616S

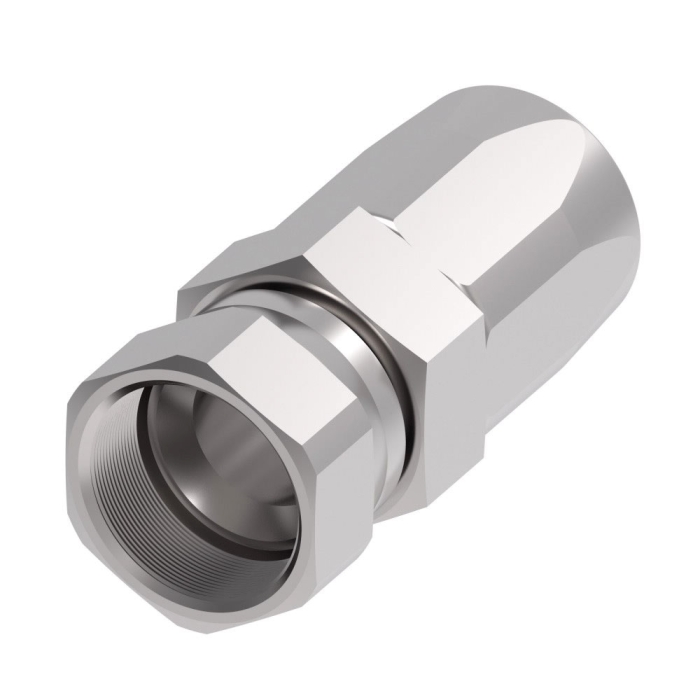

Aeroquip® EJ5306 Carbon Steel Female SAE 37 deg JIC Swivel Field Attachable Straight Hose Fitting, 1 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER EJ5306-1616S
  • MPN: EJ5306-1616S
  • UPC: 678146193971
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Field Attachable Straight Hose Fitting, EJ5306 Series, Hose Connection: 1 in, Connection Type 1: Hose, Connection Size 1: 1 in, Hose Dash Size: 16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1 in, Nominal Size: 1 in, Thread Size 2: 1-5/16-12, Hex Size: 1.5 x 1.44 in, Cut-Off Factor: 1.62 in, Carbon Steel, Dimensions: 2.78 in L x 1.547 in W x 1.547 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      1 in
Nominal Size      :      1 in
Thread Size 2      :      1-5/16-12
Hex Size      :      1.5 x 1.44 in
Cut-Off Factor      :      1.62 in
Material      :      Carbon Steel
Series      :      EJ5306
Dimensions      :      2.78 in L x 1.547 in W x 1.547 in H
Hose Connection      :      1 in
Connection Type 1      :      Hose
Connection Size 1      :      1 in
Hose Dash Size      :      16
Connection 2      :      1 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
