Aeroquip® FC7988-1212S
Send Print
  1. pin-int

Aeroquip® FC7988-1212S

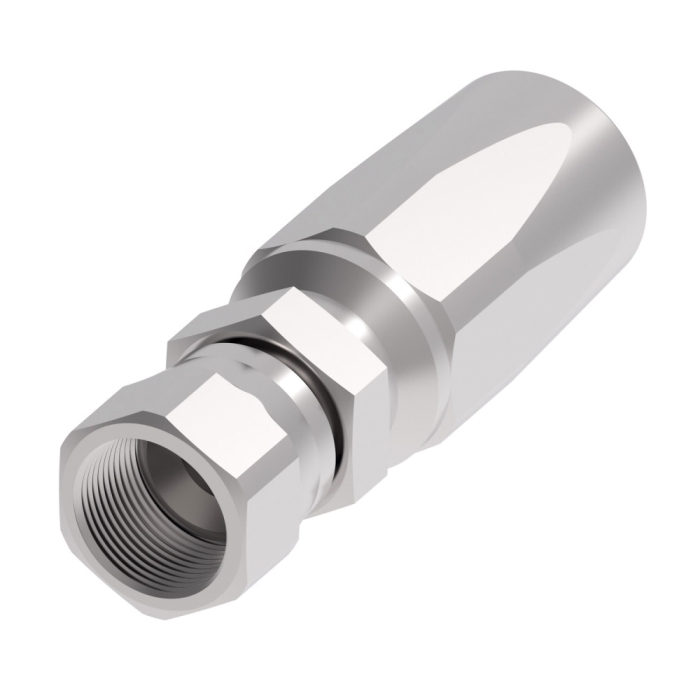

Aeroquip® FC7988 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel 100R1 Reusable Straight Hose Fitting, 3/4 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC7988-1212S
  • MPN: FC7988-1212S
  • UPC: 678146060907
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 100R1 Reusable Straight Hose Fitting, FC7988 Series, Hose Connection: 3/4 in, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/4 in, 3000 psi, Cut-Off Factor: 2.2 in, Carbon Steel, Finish: Dura-Kote, For Use With: GH663 Series Hoses, Dimensions: 3.8 in L x 1.31 in W x 1.51 in H

Fitting Type      :      Straight Hose Fitting
Gender 2      :      Female
Connection Size 2      :      3/4 in
Nominal Size      :      3/4 in
Thread Size 2      :      1-1/16-12
Hex Size      :      1-1/4 in
Pressure Rating      :      3000 psi
Cut-Off Factor      :      2.2 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      GH663 Series Hoses
Series      :      FC7988
Dimensions      :      3.8 in L x 1.31 in W x 1.51 in H
Hose Connection      :      3/4 in
Connection Type 1      :      Hose
Connection Size 1      :      3/4 in
Hose Dash Size      :      12
Connection 2      :      3/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
