Aeroquip® FC8171-0606S AER FC8171-0606S | Tipco Technologies
Aeroquip® FC8171-0606S
Send Print
  1. pin-int

Aeroquip® FC8171-0606S

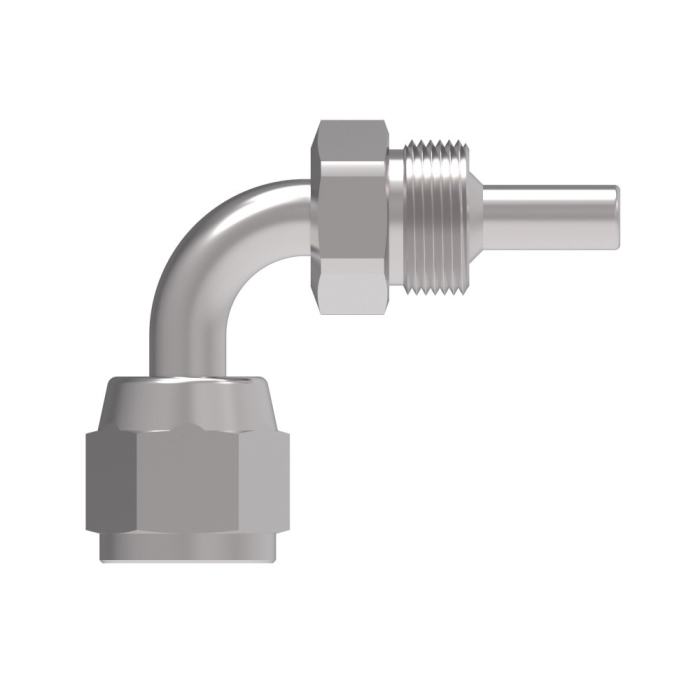

Aeroquip® FC8171 Dura-Kote Carbon Steel Female SAE 37 deg JIC Swivel Crimp Hose 90 deg Elbow, 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC8171-0606S
  • MPN: FC8171-0606S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Crimp Hose 90 deg Elbow, FC8171 Series, Hose Connection: 3/8 in, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 3/4 in, Cut-Off Factor: 1.027 in, Carbon Steel, Finish: Dura-Kote, For Use With: 2807 Series Hoses, Dimensions: 1.88 in L x 0.75 in W x 1.5 in H

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      5/8-18
Hex Size      :      3/4 in
Cut-Off Factor      :      1.027 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      2807 Series Hoses
Series      :      FC8171
Dimensions      :      1.88 in L x 0.75 in W x 1.5 in H
Hose Connection      :      3/8 in
Connection Type 1      :      Hose
Connection Size 1      :      3/8 in
Hose Dash Size      :      06
Connection 2      :      3/8 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
