Aeroquip® FITT. #32

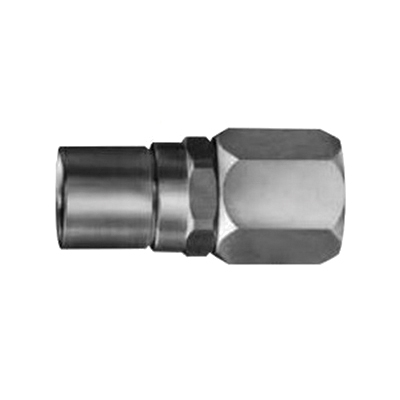

Aeroquip® FITT. #32 Brass SAE 45 deg Swivel Permanent Hose End, 5/16 x 3/8 in

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FITT. #32
  • MPN: FITT. #32
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Permanent Hose End, Hose Connection: 5/16 in, Connection Type 1: Hose, Connection Size 1: 5/16 in, Hose Dash Size: 05, Connection Type 2: SAE 45 deg Swivel, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 5/8 x 3/4 in, Cut-Off Factor: 0.96 in, Brass, For Use With: STW, SCTW, B, M, S, and SC Everflex® Hoses, Dimensions: 1.63 in L

Fitting Type      :      Hose End
Connection Size 2      :      3/8 in
Nominal Size      :      3/8 in
Thread Size 2      :      5/8-18
Hex Size      :      5/8 x 3/4 in
Cut-Off Factor      :      0.96 in
Material      :      Brass
For Use With      :      STW, SCTW, B, M, S, and SC Everflex® Hoses
Dimensions      :      1.63 in L
Hose Connection      :      5/16 in
Connection Type 1      :      Hose
Connection Size 1      :      5/16 in
Hose Dash Size      :      05
Connection 2      :      3/8 in SAE Swivel
Connection Type 2      :      SAE 45 deg Swivel
