Dixon® 688-12

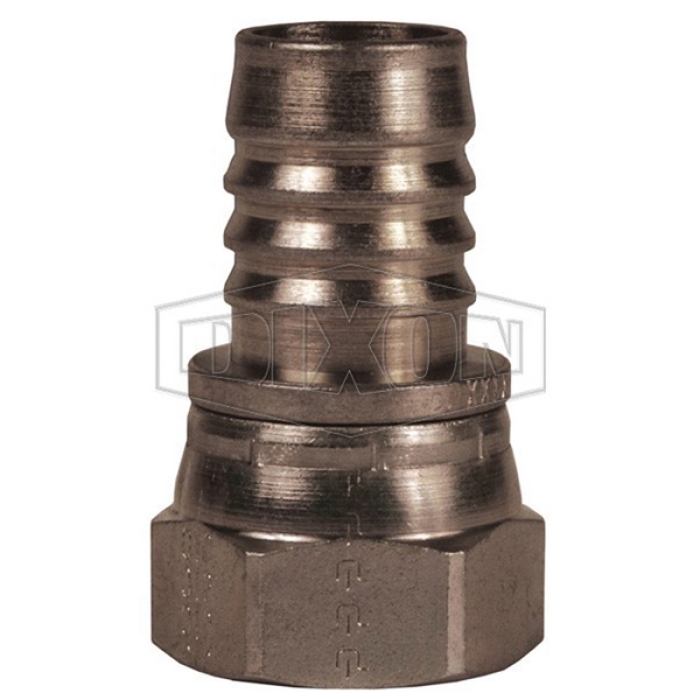

Dixon® 688-12 Plated Steel Female SAE 37 deg JIC Swivel Hydraulic Suction and Return Line Stem, 1-1/16 x 3/4 in

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 688-12
  • MPN: 688-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Hydraulic Suction and Return Line Stem, Hose Connection: 3/4 in, Connection Type 1: Hose, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Steel

California residents see Prop 65 WARNINGS

Fitting Type      :      Stem
Gender 2      :      Female
Connection Size 2      :      3/4 in
Nominal Size      :      3/4 in
Thread Size 2      :      1-1/16-12
Material      :      Steel
Hose Connection      :      3/4 in
Connection Type 1      :      Hose
Connection Size 1      :      3/4 in
Hose Dash Size      :      12
Connection 2      :      3/4 in JIC Swivel
Connection Type 2      :      SAE 37 deg JIC Swivel
  • Barbs provide easy assembly and maximum gripping action
  • Return line clamps must be used with these fittings

Applications: Designed and machined for hydraulic suction line applications using SAE100R4 hydraulic hose
