Gates® 16C5-12RMP

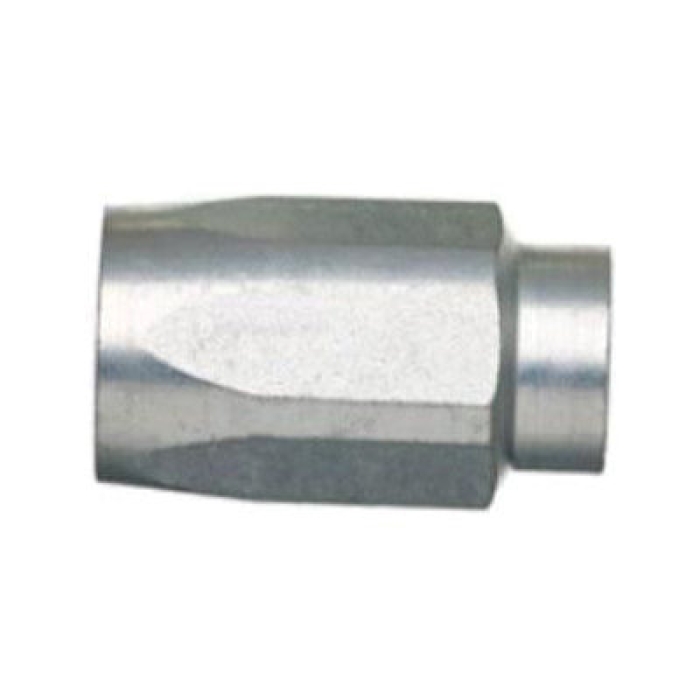

Gates® 16C5-12RMP Attachable Reusable Straight Hose Fitting, 7/8 in x 3/4 in, Hose x 30 deg Cone Seat MNPTF, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 16C5-12RMP
  • MPN: 16C5-12RMP
  • UPC: 072053160543
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Our D.O.T. Type A1 field attachable couplings work with Gates® C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

Gates® Attachable Reusable Straight Hose Fitting, Male Gender 2, Connection Size 2: 3/4 in, 3/4 in Nominal, 3/4-14 Thread Size 2, 1-1/8 in Hex, 1.53 in Cut-Off Factor, Steel, For Use With: C5E Hydraulic Hoses, 2.71 in L, 7/8 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 7/8 in, 14 Hose Dash, 3/4 in 30 deg Cone Seat MNPTF Connection 2, Connection Type 2: 30 deg Cone Seat MNPTF

Fitting Type      :      Hose Fitting
Gender 2      :      Male
Connection Size 2      :      3/4 in
Nominal Size      :      3/4 in
Thread Size 2      :      3/4-14
Hex Size      :      1-1/8 in
Cut-Off Factor      :      1.53 in
Material      :      Steel
For Use With      :      C5E Hydraulic Hoses
Dimensions      :      2.71 in L
Hose Connection      :      7/8 in
Connection Type 1      :      Hose
Connection Size 1      :      7/8 in
Hose Dash Size      :      14
Connection 2      :      3/4 in 30 deg Cone Seat MNPTF
Connection Type 2      :      30 deg Cone Seat MNPTF
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_20GL_20FL_Catalog.pdf
