Gates® 8C5-8RMS

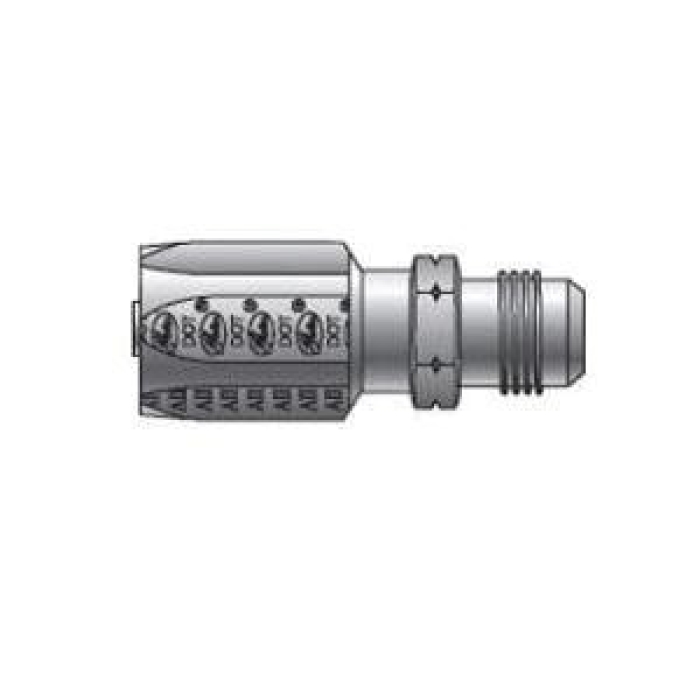

Gates® 8C5-8RMS Attachable Reusable Straight Hose Fitting, 13/32 in x 1/2 in, Hose x SAE 45 deg Flare, Steel

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 8C5-8RMS
  • MPN: 8C5-8RMS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Our D.O.T. Type A1 field attachable couplings work with Gates® C5E hose to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.

Gates® Attachable Reusable Straight Hose Fitting, Male Gender 2, Connection Size 2: 1/2 in, 1/2 in Nominal, 3/4-16 Thread Size 2, 13/16 x 15/16 in Hex, 1.53 in Cut-Off Factor, Steel, For Use With: C5E Hydraulic Hoses, 2.67 in L, 13/32 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 13/32 in, 1/2 in SAE 45 deg Flare Connection 2, Connection Type 2: SAE 45 deg Flare

Fitting Type      :      Hose Fitting
Gender 2      :      Male
Connection Size 2      :      1/2 in
Nominal Size      :      1/2 in
Thread Size 2      :      3/4-16
Hex Size      :      13/16 x 15/16 in
Cut-Off Factor      :      1.53 in
Material      :      Steel
For Use With      :      C5E Hydraulic Hoses
Dimensions      :      2.67 in L
Hose Connection      :      13/32 in
Connection Type 1      :      Hose
Connection Size 1      :      13/32 in
Connection 2      :      1/2 in SAE 45 deg Flare
Connection Type 2      :      SAE 45 deg Flare
