Super Swivels® SS12MJ12XFJ12
Send Print
  1. pin-int

Super Swivels® SS12MJ12XFJ12

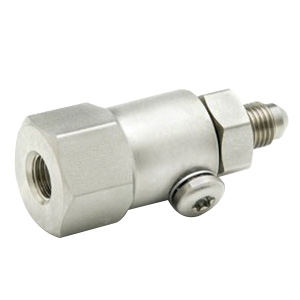

Super Swivels® SS12MJ12XFJ12 Single Plane In-Line Swivel, 3/4 in Male 37 deg JIC Swivel x 3/4 in Female 37 deg JIC Swivel

  • Manufacturers: Super Swivels
  • Brand Name: Super Swivels®
  • Tipco Part No: SUP SS12MJ12XFJ12
  • MPN: SS12MJ12XFJ12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Super Swivels Single Plane In-Line Swivel, Connection Type 1: 37 deg JIC Swivel, Gender 1: Male, Connection Size 1: 3/4 in, Thread Size 1: 11/16-12 UN, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 11/16-12 UN, Hex Size: 1-1/8 x 1-1/2 in, 4500 psi, Dimensions: 1.675 in Dia x 3.505 in L

Fitting Type      :      Swivel
Gender 2      :      Female
Connection Size 2      :      3/4 in
Thread Size 2      :      11/16-12 UN
Hex Size      :      1-1/8 x 1-1/2 in
Pressure Rating      :      4500 psi
Dimensions      :      1.675 in Dia x 3.505 in L
Connection 1      :      3/4 in JIC Swivel
Connection Type 1      :      37 deg JIC Swivel
Gender 1      :      Male
Connection Size 1      :      3/4 in
Thread Size 1      :      11/16-12 UN
Connection 2      :      3/4 in JIC Swivel
Connection Type 2      :      37 deg JIC Swivel

Inline swivels rotating joints provide for minimal friction allowing free movement of hoses and piping in fluid conducting power systems. The compact design fits in tight areas, Super Swivels® one piece barrel and stem with integrated ball bearing race design withstands heavy side loads preventing premature seal wear and leaks. This pass-through inline design is the most standard configuration in live swivels. Super Swivels® connect directly to hose lines without adapters reducing overall costs of hydraulics.
