CPC® LCD13006

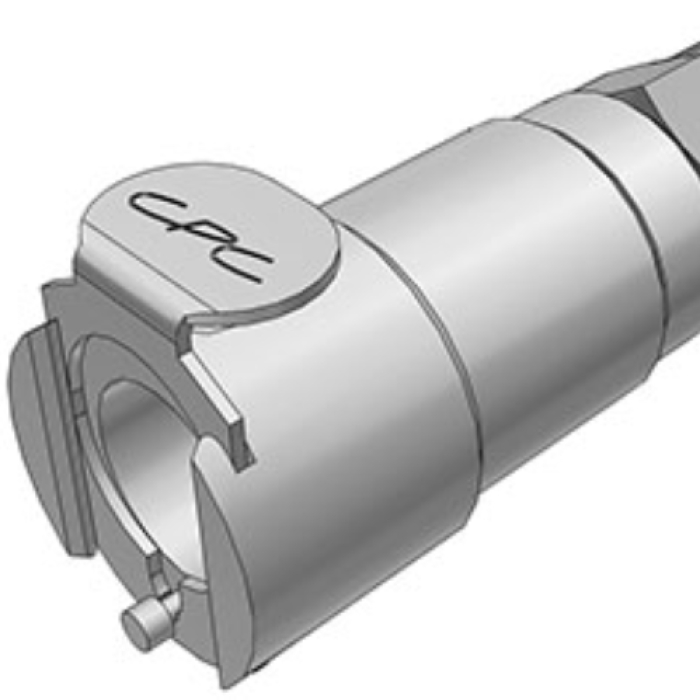

3/8 PTF Valved In-Line Coupling Body with brass construction and chrome finish

  • Manufacturers: CPC
  • Brand Name: CPC®
  • Tipco Part No: CPC LCD13006
  • MPN: LCD13006
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Choose the CPC LCD13006 for a reliable, durable valved in-line coupling body that ensures leak-free connections in your fluid handling systems. Its robust brass construction and quality seals make it ideal for demanding industrial applications. Available in packs of 10 for your convenience.

The CPC LC Series 3/8 PTF Valved In-Line Coupling Body (Part Number LCD13006) is a high-quality coupling body designed for secure and reliable fluid connections in industrial applications. Constructed from durable brass with a chrome finish, this coupling body offers excellent corrosion resistance and longevity. It features a valved design with a 316 stainless steel valve spring and BUNA-N seals, ensuring leak-free operation and compatibility with a wide range of fluids. The coupling body supports a pressure range from vacuum up to 250 psi (17.3 bar) and operates effectively within a temperature range of -40°F to 180°F (-40°C to 82°C). Its free-floating mounting option allows for flexible installation. This coupling body is ideal for use in pneumatic, hydraulic, and general-purpose fluid handling systems where reliable quick disconnects are required. The package quantity is 10 units per pack, making it suitable for both small and large scale industrial needs.

Material      :      Brass
Material      :      Chrome
Color      :      Metallic
  • Material: Brass with chrome finish
  • Pressure Range: Vacuum to 250 psi (17.3 bar)
  • Temperature Range: -40°F to 180°F (-40°C to 82°C)
  • Seal Options: BUNA-N
  • Valve Spring: 316 Stainless Steel
  • Mounting Option: Free Floating
