Aeroquip® by Danfoss B4KP26

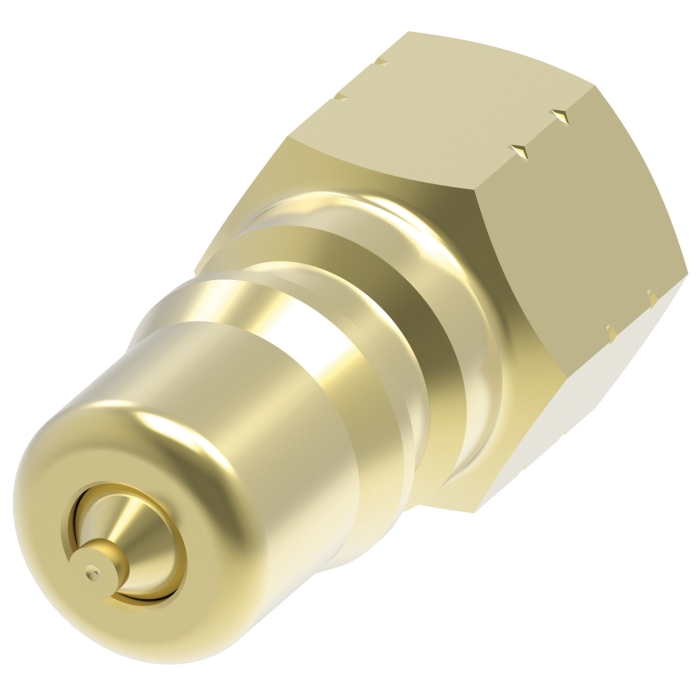

Aeroquip® by Danfoss Hansen HK Series B4KP26 Interchange Coupling Plug, 1/2 in x 1/2 in, Quick Connect x NPTF, Brass
- Manufacturers: Danfoss
- Brand Name: Aeroquip® by Danfoss
- Tipco Part No: ALT B4KP26
- MPN: B4KP26
- UPC: 639789342249
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Eaton’s HK brass is a general-purpose industrial interchange coupling available in valved or non-valved designs, offered in brass for excellent corrosion resistance in rugged applications where stainless steel is unacceptable. The HK Series features a ball latch mechanism with automatic self sealing poppet valves.
Aeroquip® by Danfoss Hansen Interchange Coupling Plug, Female Gender 2, Connection Size 2: 1/2, 1/2-14 Thread Size 2, 1.13 Hex, 5000, Brass, Dimensions: 2.03 in L x 1.3 in W x 1.3 in H, Dimension Standards: ISO 7241-1B, HK Series, -40 to 250 Temperature Rating, 1/2 in Male Quick Connect Connection 1, Connection Type 1: Quick Connect, Male Gender 1, Connection Size 1: 1/2, 1/2-14 Thread Size 1, 1/2 in Female NPTF Connection 2, Connection Type 2: NPTF
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1.13 in |
| Pressure Rating | : | 5000 psi |
| Material | : | Brass |
| Dimensions | : | 2.03 in L x 1.3 in W x 1.3 in H |
| Dimension Standards | : | ISO 7241-1B |
| Series | : | HK Series |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Male Quick Connect |
| Connection Type 1 | : | Quick Connect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/2 in |
| Thread Size 1 | : | 1/2-14 |
| Connection 2 | : | 1/2 in Female NPTF |
| Connection Type 2 | : | NPTF |
- Brass construction with stainless steel springs for greater corrosion-resistant and fluid compatibility
- Self sealing poppet valve design provides excellent high and low pressure sealing
- Standard seal material Buna-N
