Aeroquip® 28S12F

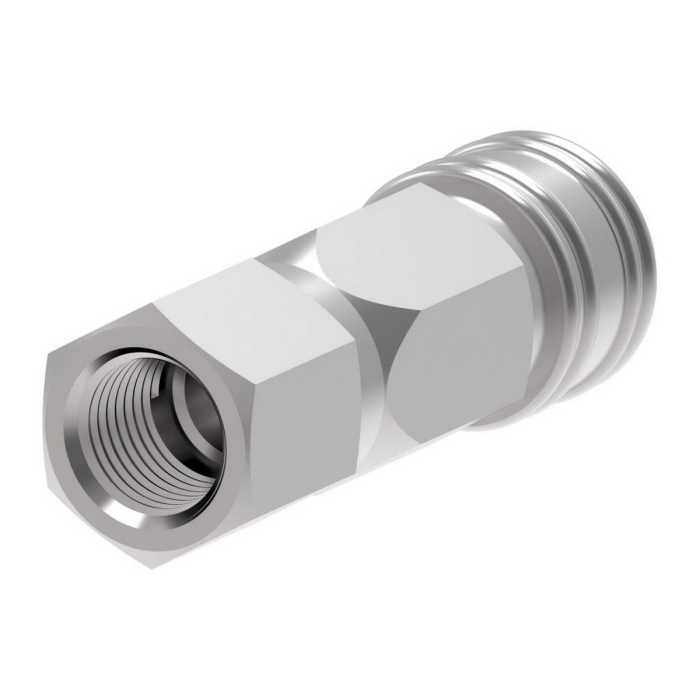

Aeroquip® 280 Brass Coupling, 1/8 in Female Quick Disconnect x 1/8 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 28S12F
  • MPN: 28S12F
  • UPC: 678146165497
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, 280 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Brass, Dimensions: 1.79 in L x 0.56 in W x 0.56 in H

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/8 in
Thread Size 2      :      1/8-27
Material      :      Brass
Dimensions      :      1.79 in L x 0.56 in W x 0.56 in H
Series      :      280
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/8 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPTF

Danfoss's 280 Series miniature ball lock quick disconnect couplings are designed for use with compressed air, gases and liquids.

  • Series 280 sockets/females have a 1HK valve, which provides higher flow capacity
  • Buna-N seal material
