Aeroquip® 2KIGF16

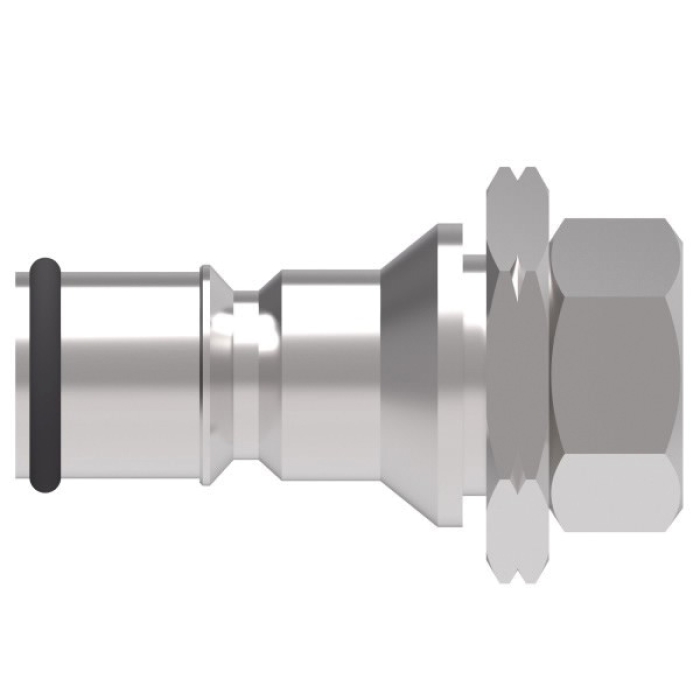

Aeroquip® 2HKIG Carbon Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Male Quick Disconnect x 1/4 in FNPTF

Manufacturers: Danfoss
Brand Name: Aeroquip®
Tipco Part No: HSN 2KIGF16
MPN: 2KIGF16
UPC: 678146100313
CPN:
Min. Order Qty: 1
Qty. Interval: 1
Register to see Availability

List Price:
Qty Add To Cart
My Catalog
Add / Remove CPN

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

Aeroquip® Straight Ball Lock Coupling with 2-Way Valve, 2HKIG Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.69 in, 5000 psi, Carbon Steel, Dimensions: 1.84 in L x 1.01 in W x 1.01 in H, -40 to 250 deg F

Fitting Type	:	Coupling
Gender 2	:	Female
Connection Size 2	:	1/4 in
Thread Size 2	:	1/4-18
Hex Size	:	0.69 in
Pressure Rating	:	5000 psi
Material	:	Carbon Steel
Dimensions	:	1.84 in L x 1.01 in W x 1.01 in H
Series	:	2HKIG
Temperature Rating	:	-40 to 250 deg F
Connection 1	:	1/4 in Quick Disconnect
Connection Type 1	:	Quick Disconnect
Gender 1	:	Male
Connection Size 1	:	1/4 in
Connection 2	:	1/4 in NPT
Connection Type 2	:	NPTF

Danfoss's 2HKIG Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.
