Aeroquip® 2HIL16

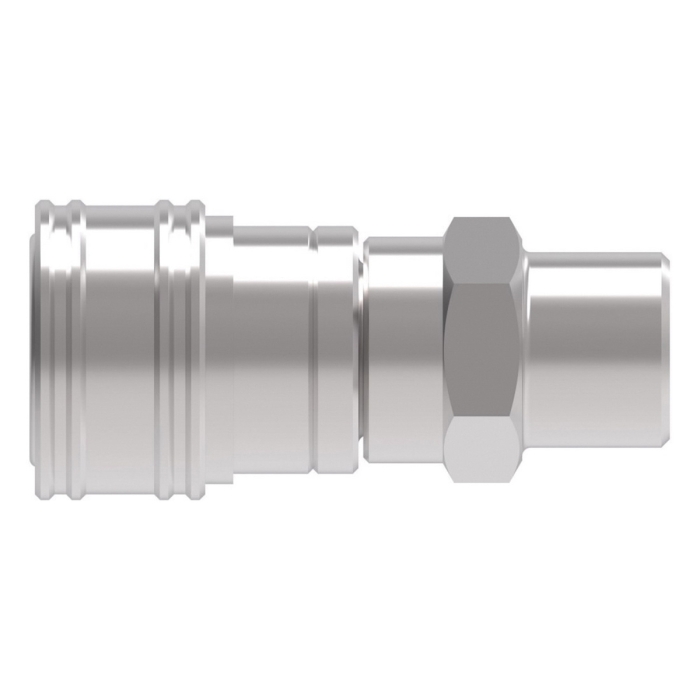

Aeroquip® 2HKIL Stainless Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Female Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 2HIL16
  • MPN: 2HIL16
  • UPC: 678146100016
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Straight Ball Lock Coupling with 2-Way Valve, 2HKIL Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.81 in, 5000 psi, Stainless Steel, Dimensions: 2.26 in L x 1.06 in W x 1.06 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      0.81 in
Pressure Rating      :      5000 psi
Material      :      Stainless Steel
Dimensions      :      2.26 in L x 1.06 in W x 1.06 in H
Series      :      2HKIL
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss's 2HKIL Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.

  • Ball lock design
  • Proprietary interchange with all stainless steel construction
  • Buna-N seal material

Applications: Chemical, military, aerospace, food and beverage
