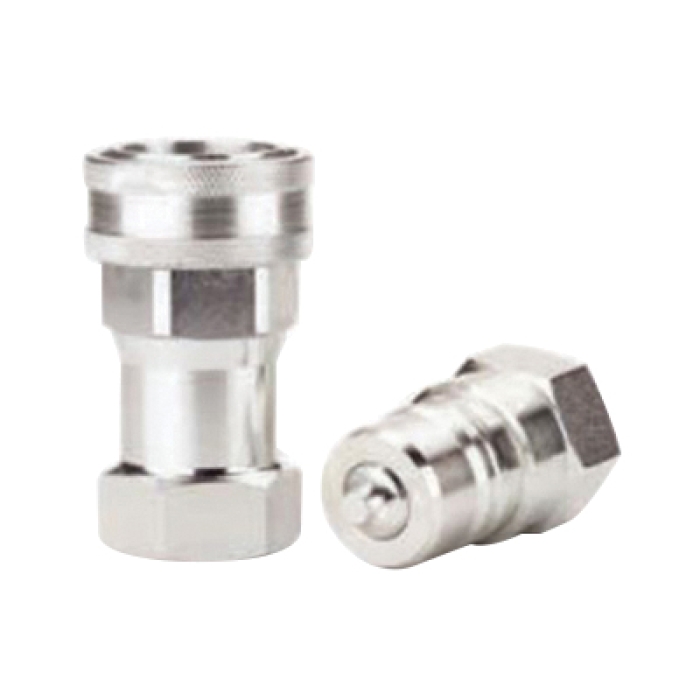

Aeroquip® 5601-4-4S
Aeroquip® 5600 Zinc Trivalent-Plated Carbon Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Female Quick Disconnect x 1/4 in FNPTF
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 5601-4-4S
- MPN: 5601-4-4S
- UPC: 678146165671
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Straight Ball Lock Coupling with 2-Way Valve, 5600 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.88 in, 5000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 1.81 in L x 1.08 in W, Dimension Standards: ISO 7241-1 Series A, -40 to 250 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 0.88 in |
| Pressure Rating | : | 5000 psi |
| Material | : | Carbon Steel |
| Finish | : | Zinc Trivalent-Plated |
| Dimensions | : | 1.81 in L x 1.08 in W |
| Dimension Standards | : | ISO 7241-1 Series A |
| Series | : | 5600 |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss 5600 Series features a rugged ball latch mechanism with self sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.
- Self-sealing poppet valve design provides excellent high and low pressure sealing
- Streamlined valving provides minimum pressure drop
Applications: Hydraulic fluid transfer, agricultural equipment, construction equipment, dump, snow plow and maintenance vehicles and in-plant manufacturing
