Aeroquip® FD42-1001-04-04
Send Print
  1. pin-int

Aeroquip® FD42-1001-04-04

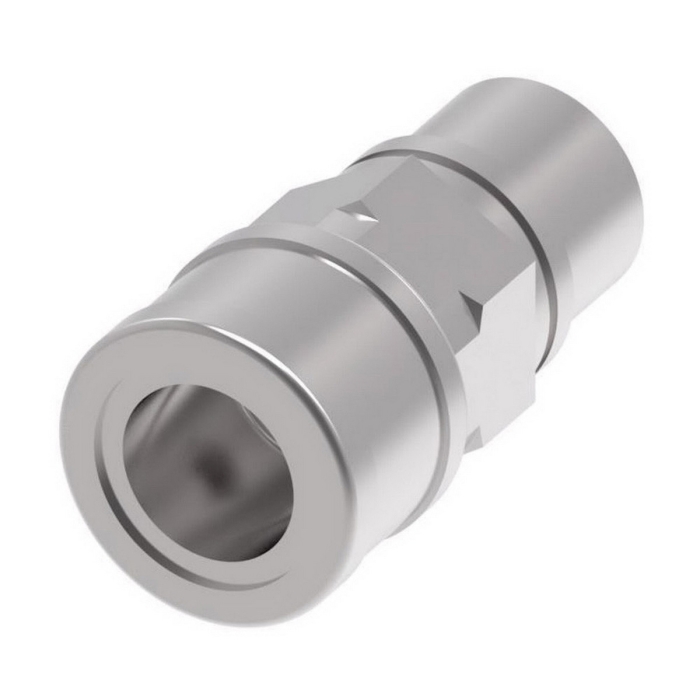

Aeroquip® FD42 Carbon Steel Valved Coupling, 1/4 in Female Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FD42-1001-04-04
  • MPN: FD42-1001-04-04
  • UPC: 639789300157
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Valved Coupling, FD42 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.88 in, 3000 psi, Carbon Steel, Dimensions: 2.04 in L x 1.01 in W x 1.01 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      0.88 in
Pressure Rating      :      3000 psi
Material      :      Carbon Steel
Dimensions      :      2.04 in L x 1.01 in W x 1.01 in H
Series      :      FD42
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
