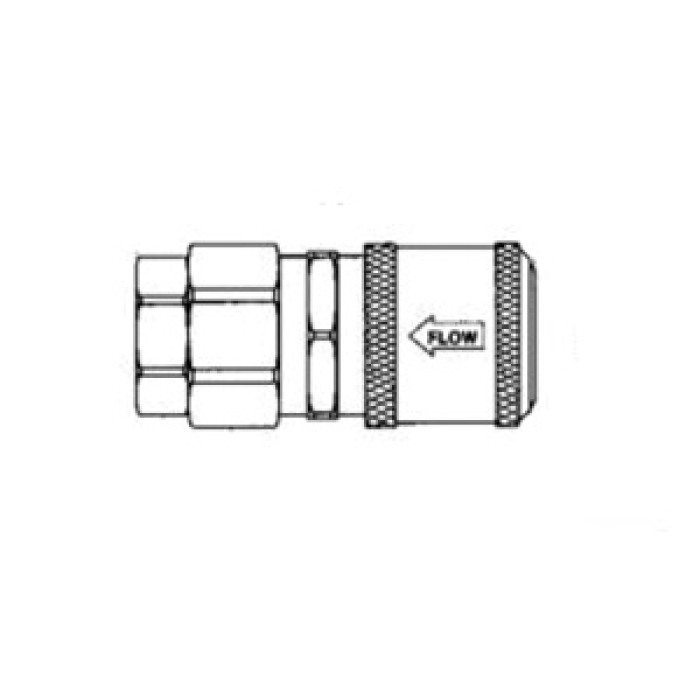

Aeroquip® Valved Coupling, FD49 Series, Connection Type 1: SAE O-Ring, Gender 1: Female, Connection Size 1: 1/2 in, Thread Size 1: 1/2-14, Connection Type 2: Quick Disconnect, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 1.06 in, 3000 psi, Steel, Dimensions: 2.82 in L
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Hex Size | : | 1.06 in |
| Pressure Rating | : | 3000 psi |
| Material | : | Steel |
| Dimensions | : | 2.82 in L |
| Series | : | FD49 |
| Connection 1 | : | 1/2 in O-Ring |
| Connection Type 1 | : | SAE O-Ring |
| Gender 1 | : | Female |
| Connection Size 1 | : | 1/2 in |
| Thread Size 1 | : | 1/2-14 |
| Connection 2 | : | 3/8 in Quick Disconnect |
| Connection Type 2 | : | Quick Disconnect |
Danfoss FD49 Series meets NFPA standard T3.20.15 and was developed in conjunction with HTMA (hydraulic tool manufacturer association). Danfoss Twin-Guard™ sealing system prevents weepage at low pressures and allows connection and disconnection against pressure up to 500 psi.
- Dual flush face valving for minimal fluid loss and air inclusion
- Tubular valve and sleeve construction for high-fluid flow with low pressure drop
- Push-to-connect latching for one hand operation
- Sleeve lock safety mechanism
Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
