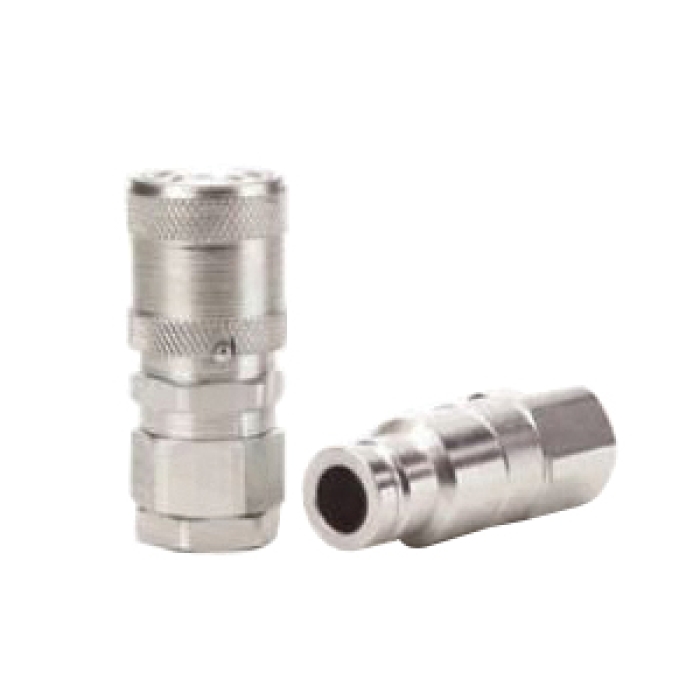

Aeroquip® FD49-1001-06-06
Aeroquip® FD49 Zinc Trivalent-Plated Carbon Steel Coupling with Valve, 3/8 in Female Quick Disconnect x 3/8 in FNPT
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER FD49-1001-06-06
- MPN: FD49-1001-06-06
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Coupling with Valve, FD49 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 1.06 in, 3000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.74 in L x 1.2 in W
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/8 in |
| Thread Size 2 | : | 3/8-18 |
| Hex Size | : | 1.06 in |
| Pressure Rating | : | 3000 psi |
| Material | : | Carbon Steel |
| Finish | : | Zinc Trivalent-Plated |
| Dimensions | : | 2.74 in L x 1.2 in W |
| Series | : | FD49 |
| Connection 1 | : | 3/8 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Female |
| Connection Size 1 | : | 3/8 in |
| Connection 2 | : | 3/8 in NPT |
| Connection Type 2 | : | NPT |
Danfoss FD49 Series meets NFPA standard T3.20.15 and was developed in conjunction with HTMA (hydraulic tool manufacturer association). Danfoss Twin-Guard™ sealing system prevents weepage at low pressures and allows connection and disconnection against pressure up to 500 psi.
- Dual flush face valving for minimal fluid loss and air inclusion
- Tubular valve and sleeve construction for high-fluid flow with low pressure drop
- Push-to-connect latching for one hand operation
- Sleeve lock safety mechanism
Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
