Aeroquip® FD56-1062-12-12
Send Print
  1. pin-int

Aeroquip® FD56-1062-12-12

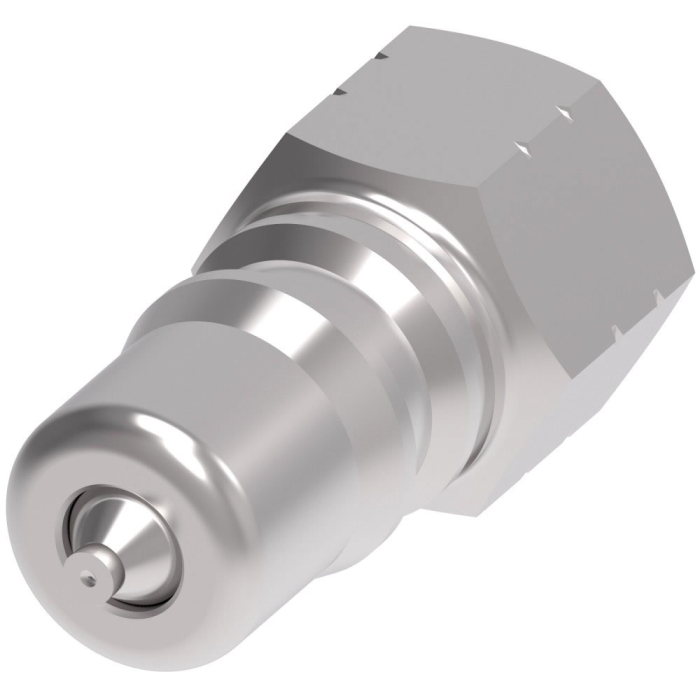

Aeroquip® FD56 Zinc Trivalent-Plated Carbon Steel Valved Coupling Plug, 3/4 in Male Quick Disconnect x 3/4 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FD56-1062-12-12
  • MPN: FD56-1062-12-12
  • UPC: 678146037787
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Valved Coupling Plug, FD56 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1.38 in, 4000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.55 in L x 1.38 in W x 1.38 in H, Dimension Standards: ISO 7241-1 Series A, -15 to 400 deg F

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/4 in
Thread Size 2      :      3/4-14
Hex Size      :      1.38 in
Pressure Rating      :      4000 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      2.55 in L x 1.38 in W x 1.38 in H
Dimension Standards      :      ISO 7241-1 Series A
Series      :      FD56
Temperature Rating      :      -15 to 400 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in NPT
Connection Type 2      :      NPT

Danfoss's 5600 Series features a rugged ball latch mechanism with self-sealing poppet valves in a wide array of port configurations and multiple valved and non-valved configurations.

  • Meets dimensional requirements to ISO standard 7241-1 Series A
  • Self sealing poppet valve design provides excellent high and low pressure sealing
  • Streamlined valving provides minimum pressure drop
  • FKM seal

Applications: Hydraulic tool (HTMA interchange), hydraulic and fluid transfer
